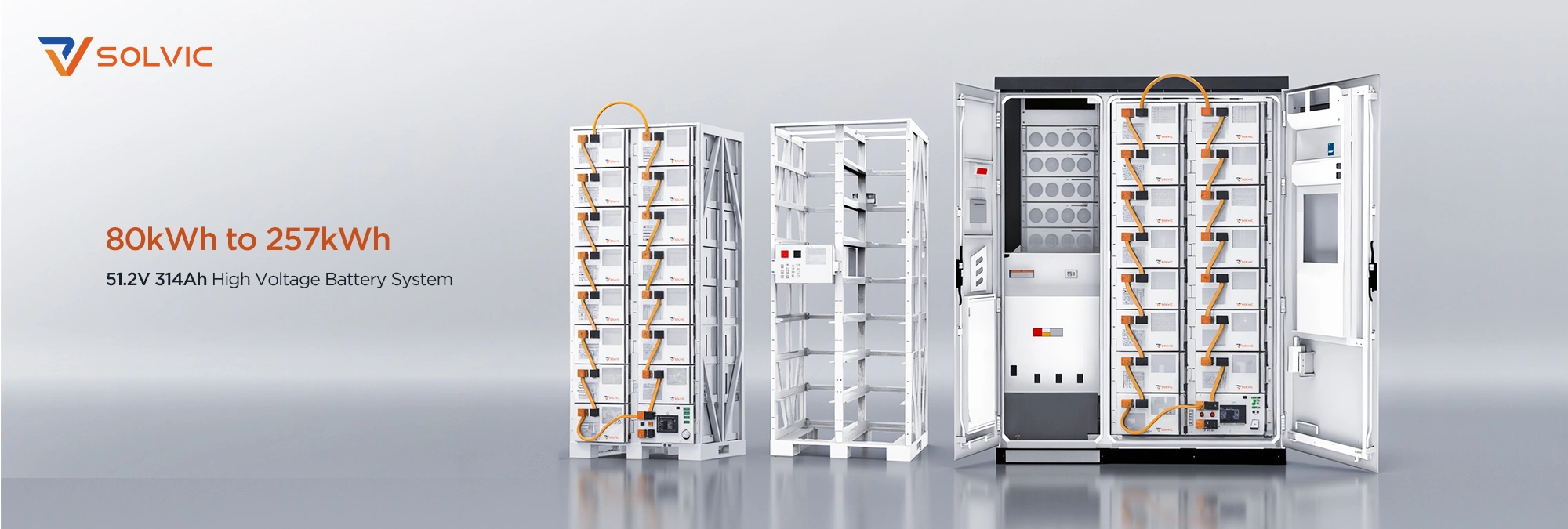

51.2V 314Ah high voltage LiFePO4 battery system, expandable from 5 to 16 modules (80-257kWh). 256-819V system voltage, 160A, 6000 cycles. For C&I energy storage, peak shaving, microgrid
| Cell Type | LiFePO4 (LFP) |
| Module Voltage / Capacity | 51.2V / 314Ah / 16.08kWh |
| System Voltage Range | 256V – 819V (5-16 modules) |
| System Capacity Range | 80 – 257 kWh (90% DoD usable) |
| Max Charge / Discharge | 160A |
| Cycle Life | ≥6000 cycles |

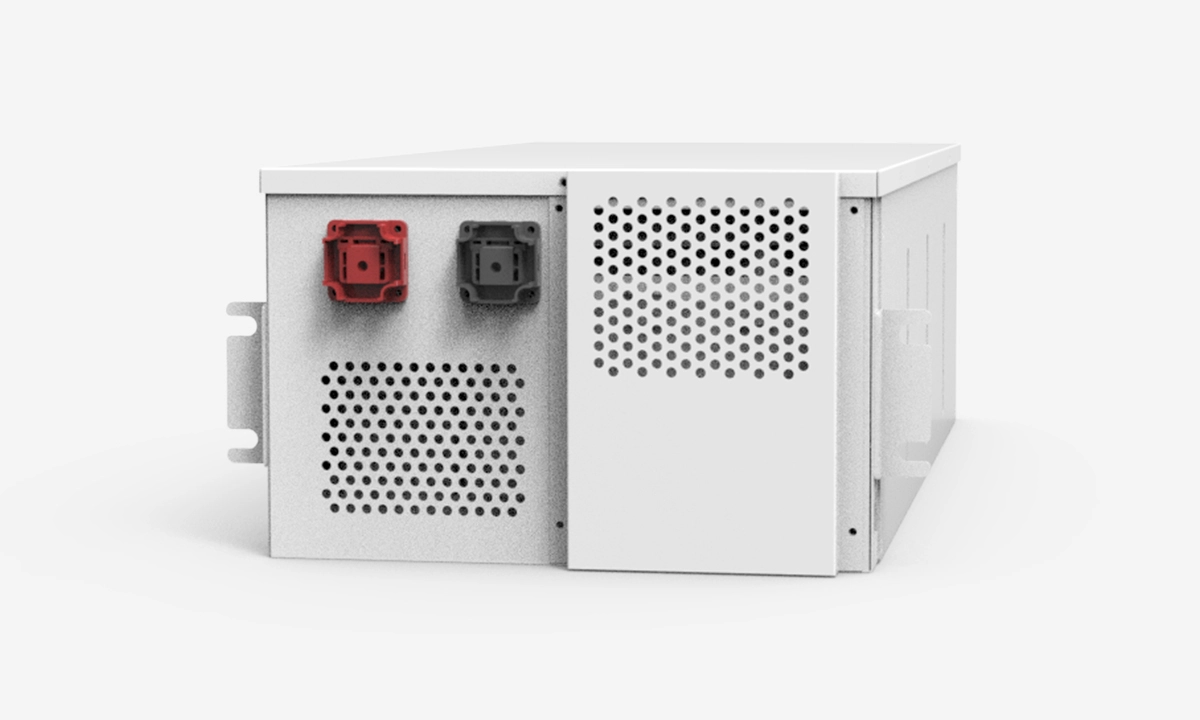

Solvic high voltage battery system is built for commercial and industrial energy storage applications. Each module is 51.2V 314Ah (16.08kWh) with Grade A LiFePO4 cells. Connect 5 to 16 modules in series to achieve system voltage from 256V to 819V and total capacity from 80kWh to 257kWh.
256-819V system voltage reduces current, enabling smaller cables and higher efficiency over long distances.
Start with 5 modules (80kWh) and expand to 16 modules (257kWh) as your energy needs grow. Pay only for what you need today.

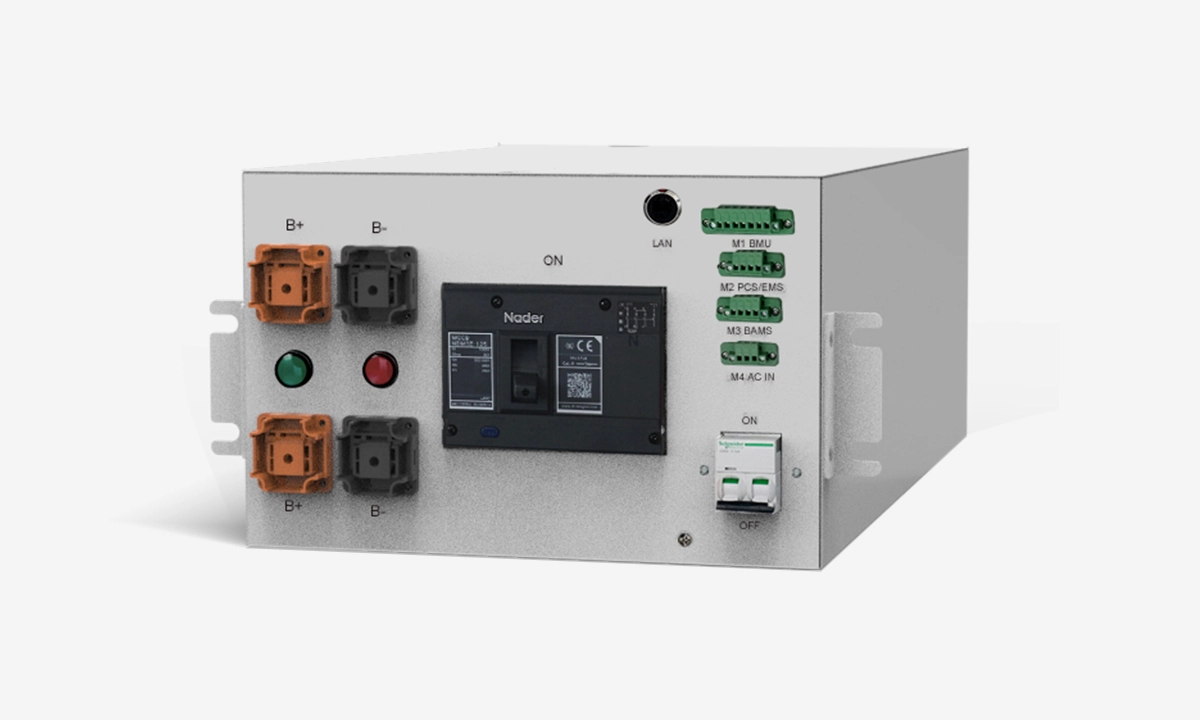

LiFePO4 chemistry with zero thermal runaway risk. Built-in BMS with CAN/RS485 communication. 6000+ cycles at 80% DoD.
Compatible with leading HV inverters: Solis S6 series, Deye HV series, Growatt WIT series, Sungrow SG series.
Perfect for: peak shaving, load shifting, solar self-consumption, microgrids, EV fleet charging, and industrial backup power.
Cell Chemistry: LiFePO4
Single Module Capacity: 16.07kWh
Module Nominal Voltage: 51.2 V
Module Capacity: 314 Ah
Operation Current: 250A
System operation Voltage: 0-1000V
Protection Grade: IP20
Communication: MODBUS RTU/CAN
| Power | 51.2V 314AH |
| Module Dimension (W*D*H) | 532*775*234mm (±5) |
| Battery Module Qty In Series (Optional) | 5-16 pcs per cluster |
| Charge / Discharge Current | 160A |
| Working Temperature | Charge: 0～55℃ / Discharge: -20～55℃ |
| Installation Way | Rack-Mounted |
| Recommend Depth of Discharge | 90% |
| Certification | CE IEC62619 UN38.3 |
| Total Energy (kWh) | 80.4 | 96.5 | 112.5 | 128.6 | 144.7 | 160.8 | 176.8 | 192.9 | 209 | 225.1 | 241.2 | 257.3 |
| Modules | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Nominal Voltage (V) | 256 | 307 | 358 | 410 | 461 | 512 | 563 | 614 | 666 | 717 | 768 | 819 |
| Operating Voltage (V) | 224-284 | 269-341 | 314-398 | 358-454 | 403-511 | 448-568 | 493-625 | 538-682 | 582-738 | 627-795 | 672-852 | 717-909 |
| Usable Energy (90%) (kWh) | 72.4 | 86.8 | 101.3 | 115.8 | 130.2 | 144.7 | 159.2 | 173.6 | 188.1 | 202.6 | 217 | 231.6 |
| Weight (kg) | ~650 | ~780 | ~900 | ~1030 | ~1150 | ~1300 | ~1420 | ~1550 | ~1650 | ~1780 | ~1900 | ~2020 |
256V to 819V depending on the number of modules (5 to 16 modules in series). Nominal voltage per module is 51.2V. System voltage increases by 51.2V with each additional module.
Yes. The modular design allows you to start with 5 modules (80kWh) and expand up to 16 modules (257kWh) as your energy needs grow. Add modules anytime – no system redesign needed.
90% DoD for daily cycling. At 90% DoD, the battery delivers over 6000 cycles. For longer life (over 8000 cycles), we recommend 80% DoD.
