The HP-AHP20A series is a high-frequency inverter charger. It supports multiple charging options, including utility, diesel
generator, and solar
| Rated Power | 2000W – 6000W |
| Output Voltage Level | 110/120VAC±3% |
| Parallel operation capability | 12 standard units |
| Switch Time | Inverter to Utility: 10ms Utility to Inverter: 20ms |
| Pure Sine Wave | IP20 |

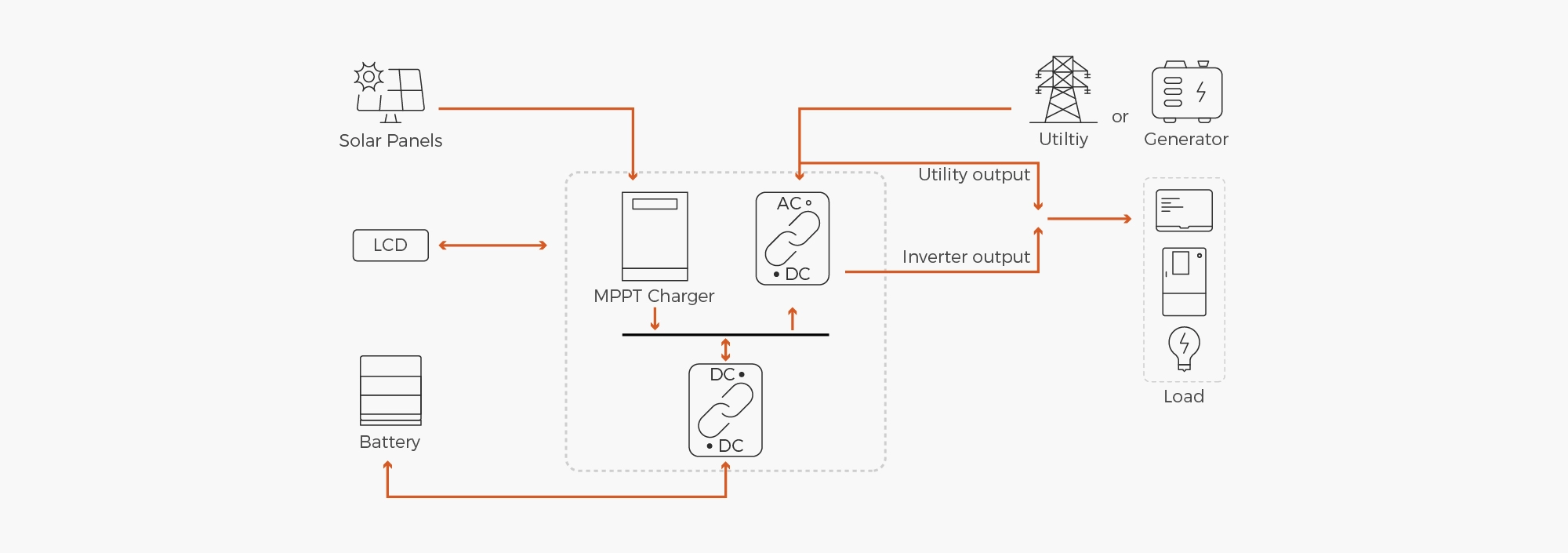

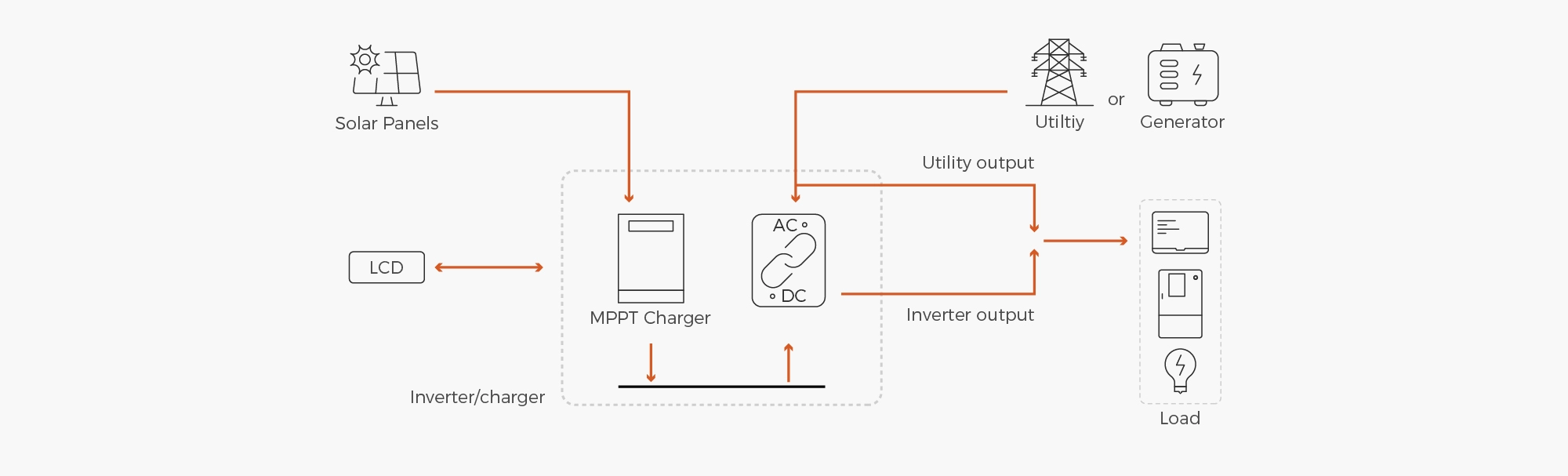

| Support mode | Battery mode / No battery mode |
The HP-AHP20A series is a high-frequency inverter charger. It supports multiple charging options, including utility, diesel generator, and solar. It is designed for utility bypass, inverter output, and energy management. The advanced DSP chip, along with its control algorithm, ensures rapid response times, reliability, and high conversion efficiency. Customers can efficiently utilize energy by flexibly switching between solar and utility power using customized settings.
This high-quality product provides a stable power supply and is suitable for hybrid power generation systems that combine solar, utility, and oil engine sources. It meets the application requirements for customers seeking costeffective residential power supply solutions.
Produces clean pure sine wave output (THDu ≤3%) for sensitive electronics. Supports both battery and non-battery operation modes for flexible system design
Advanced MPPT technology achieves >99.5% tracking efficiency. Supports two independent PV inputs to maximize solar harvest from different array orientations
AC output supports parallel operation with up to 12 units standard (16 max). Enables single-phase and three-phase configurations for scalable power expansion
Supports both lithium and lead-acid batteries with adjustable charge/discharge current limits. Features BMS communication via RJ45 isolated port
Large LCD display for real-time status monitoring. RS485 port enables remote monitoring via optional 4G/WiFi/TCP modules. Stores up to 25,000 records of historical data
Full electronic protections (overvoltage, overload, short circuit, overtemperature). Operates reliably from -20°C to +50°C, suitable for harsh environments
