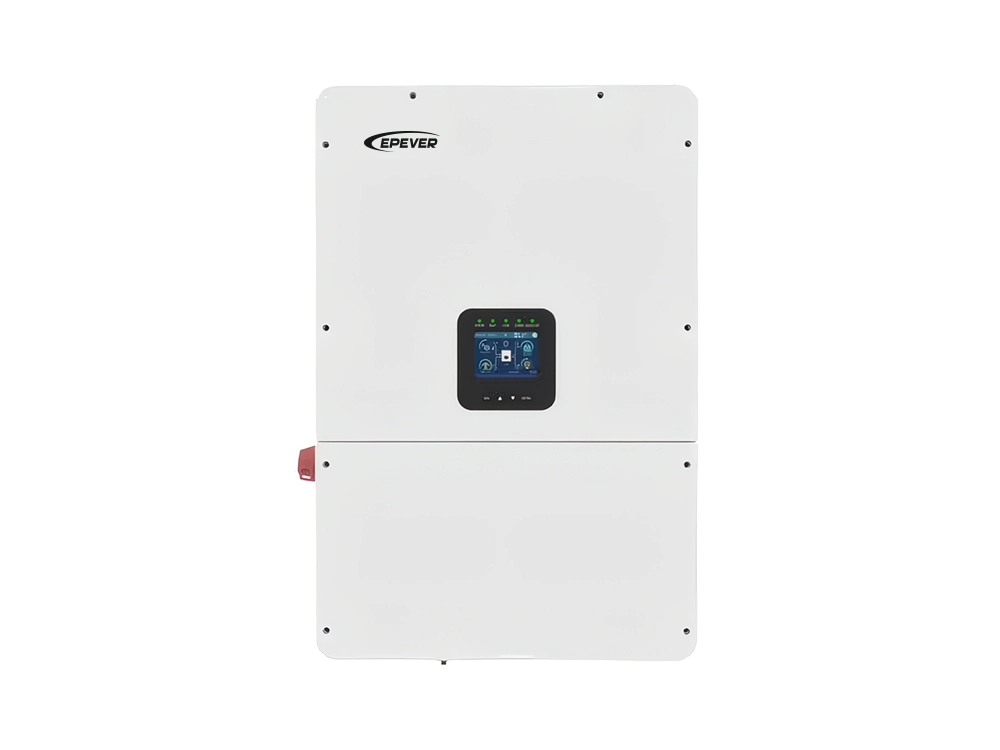

The ELD6-15k series low-voltage split-phase on-grid hybrid inverter is designed for residential, industrial, and commercial energy
storage applications.
| Rated power | 15kW |
| Output voltage | 120/240V split phase |
| Number of MPPTs | Multiple routes |
| Switch time | < 10ms |
| Max. Efficiency | 97.26% |
| Certification | IEEE1547 / UL1741SB / UL1699B / CSA C22.2 |
The ELD6-15k series low-voltage split-phase on-grid hybrid inverter is designed for residential, industrial, and commercial energy storage applications. It integrates energy storage and grid export capabilities for intelligent, efficient energy management. During the day, PV energy can be routed to power loads, charge batteries, or export to the grid, helping improve returns and operational flexibility. At night or during peak-rate hours, the battery can discharge to support continuous power supply. The system also supports charging batteries from the grid, allowing energy to be stored anytime for backup.
Built for diverse and demanding usage scenarios, the ELD Series delivers safe, reliable performance while helping maximize selfconsumption and giving users greater control over their energy, balancing cost savings with energy independence.
-150% PV oversizing capability; Max. PV input power: 22500W
-Max.4 MPPTs; Max. PV input voltage: 500VDC; Input current per string:20A
-Max input current: 80A
-Overload capability: 200% for 10s

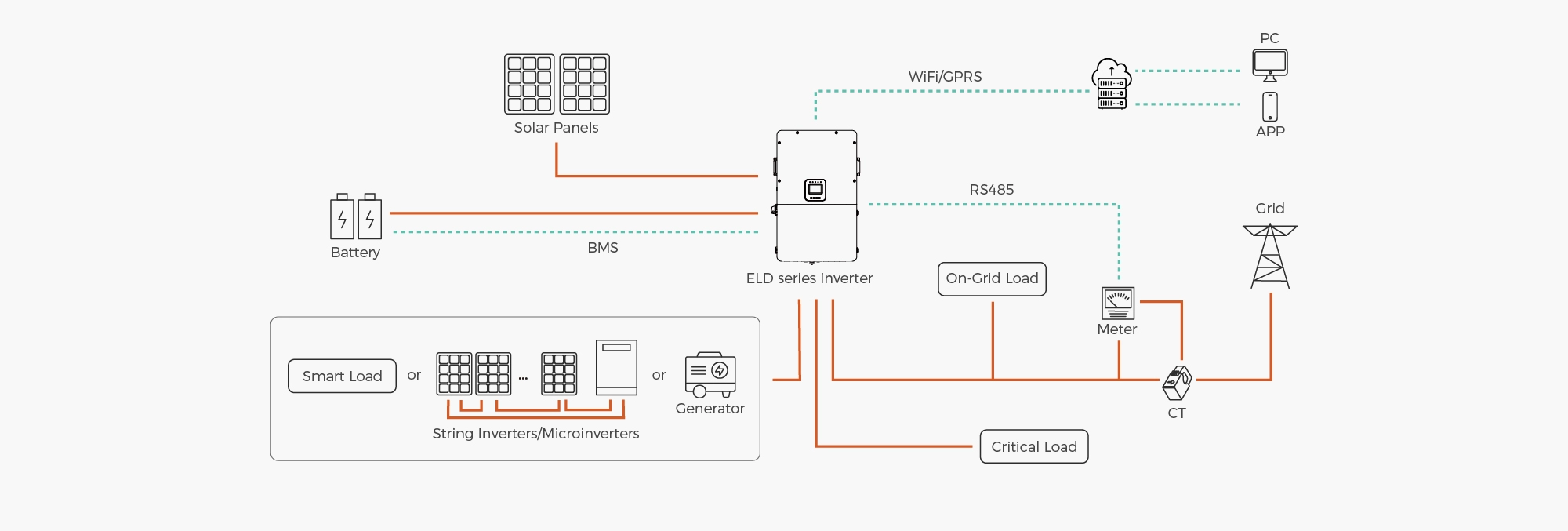

-Smart interface:
① Generator connection
② Load connection
③ AC coupling with grid-tied PV inverters
-UPS-level switching <10 ms
-Supports 100% unbalanced loads in off-grid mode
-Parallel Capability
① Up to 6 units in parallel (On-grid & Off-grid)
② Multi-battery parallel support: independent or shared battery bank
-Zero export function; Feed-in power limit
-Optional LCD display
-Standard RS485 communication port, WiFi / GPRS (Optional)
-Type 3R-rated protection
-Built-in Type II SPD
-Optional function: RSD, AFCI
