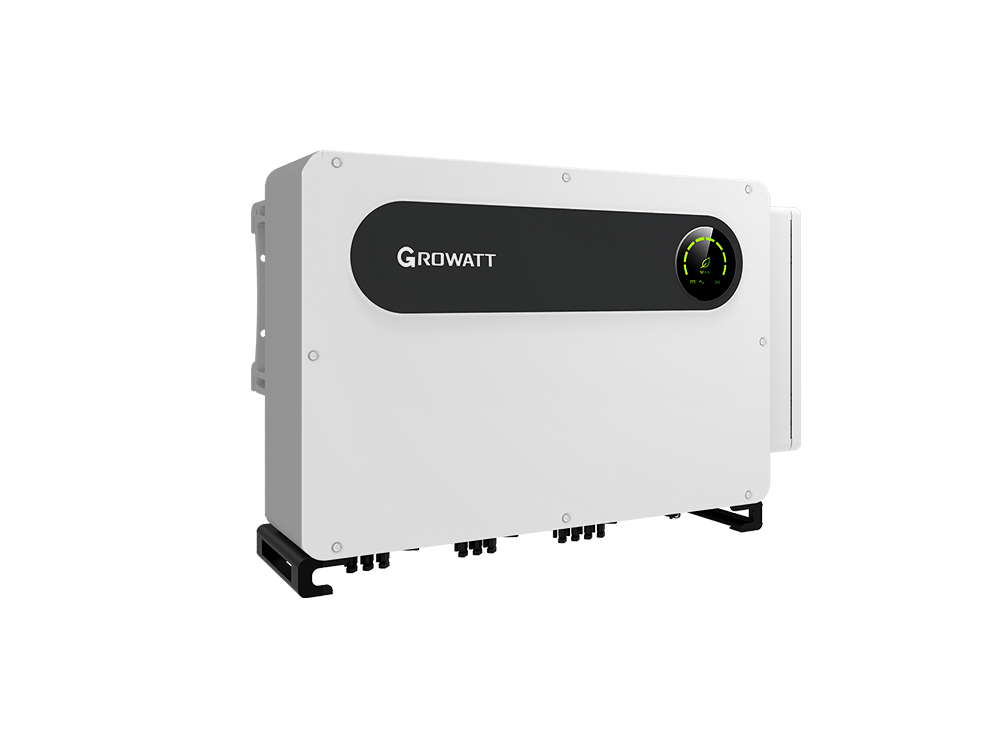

Growatt MAX 100-150KTL3-X LV 100-150kW three phase grid-tied inverter. 10 MPPT, 99.9% efficiency, 1100V DC input, IP66 outdoor rating. For commercial solar projects.
| Rated Power | 100 – 150 kW |
| Max Efficiency | 99.90% |
| PV Input | 1100V / 10 MPPT / 40A per MPPT |
| DC Oversizing | 150% |
| Protection | IP66 outdoor / Type II SPD / Fuse-free |
| Communication | RS485, WiFi, 4G, ShinePhone |
The Growatt MAX 100-150KTL3-X LV series is a three-phase grid-tied inverter designed specifically for commercial and industrial solar installations. Available in power capacities from 100kW to 150kW (100kW, 110kW, 120kW, 125kW, 136kW, 150kW), it delivers high performance and reliability for large-scale solar projects.
Featuring 10 independent MPPTs with support for up to 20 PV strings, the MAX series significantly reduces energy loss caused by shading and module mismatch. With 99.9% maximum efficiency, 150% DC oversizing, and a wide 180-1000V MPPT voltage range, the inverter starts working earlier in the morning and switches off later in the afternoon, achieving longer operation time to harvest more solar energy.
Designed for outdoor installation with an IP66-rated enclosure, the MAX series is dust-tight and waterproof, making it suitable for harsh environments. The fuse-free design, integrated DC switch, and Type II SPD on both AC and DC sides provide comprehensive protection for the entire PV system.
maximize energy harvest, reduce system losses
flexible array design, reduce shading losses
install anywhere, no equipment room required
maximize solar harvest, lower LCOE
compatible with high-power 210mm PV modules
ShinePhone, ShineServer, OSS remote diagnostics
arc fault protection for enhanced fire safety
built-in to protect module performance
| Model | MAX 100KTL3-X LV | MAX 110KTL3-X LV | MAX 120KTL3-X LV | MAX 125KTL3-X LV | MAX 136KTL3-X LV | MAX 150KTL3-X LV |
| Rated AC Power (kW) | 100 | 110 | 120 | 125 | 136 | 150 |
| Max Efficiency (%) | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 |
| Max DC Input Power (kW) | 150 | 165 | 180 | 187.5 | 204 | 225 |
| MPPT Voltage Range (V) | 180-1000 | |||||
| Number of MPPTs | 10 | |||||
| Number of Strings | 20 | |||||
| Max Input Current per String (A) | 16-20 | |||||
| AC Nominal Voltage (V) | 380/400 | |||||
| AC Frequency (Hz) | 50/60 | |||||
| Rated Output Current (A) @400V | 144.3 | 158.8 | 173.2 | 180.4 | 196.3 | 216.5 |
| Ingress Protection | IP66 | |||||
| Cooling | Smart fan | |||||
| DC Switch | Integrated | |||||
| PID Recovery | Built-in | |||||
| Communication | RS485, WiFi, 4G | |||||
99.9% maximum efficiency and 99.0% European efficiency – among the highest in its class.
Yes. Growatt offers ShinePhone, ShineServer, and OSS (Online Smart Service) for remote monitoring, smart IV scan, diagnosis, and firmware upgrades.
The inverter includes Type II SPD on both DC and AC sides, integrated DC switch, fuse-free design, optional AFCI, and built-in PID recovery.
