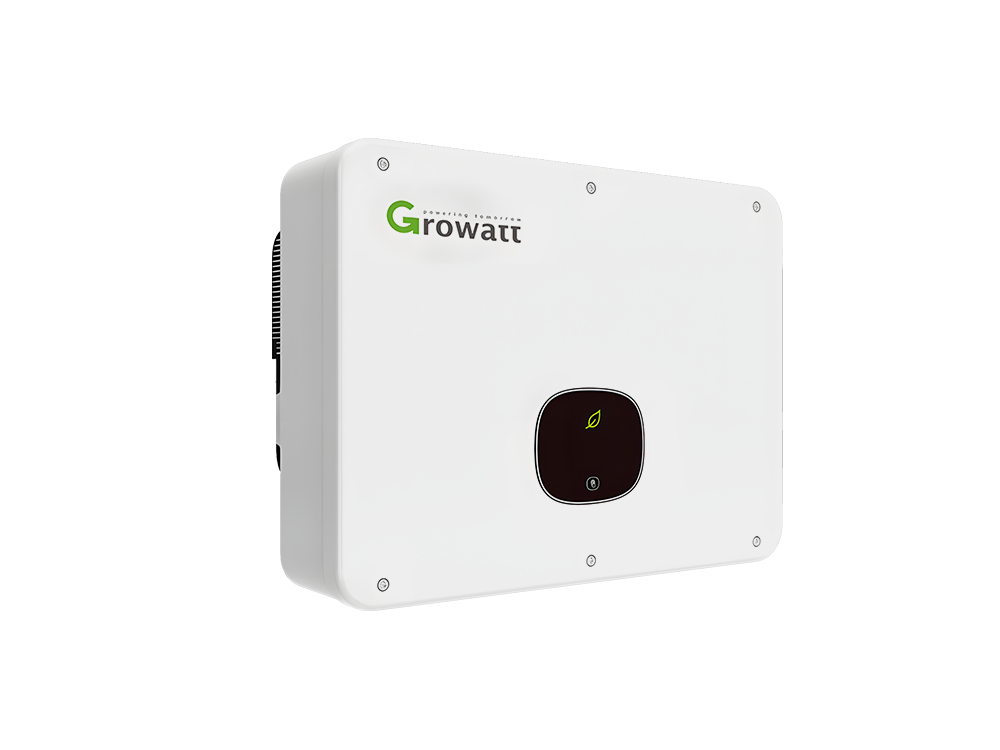

Growatt MID 25-40KTL3-X 25-40kW three phase grid-tied inverter. 3 MPPT, 98.8% efficiency, 1100V DC input, IP66 outdoor rating. For commercial solar projects.
| Rated Power | 25 – 40 kW |
| Max Efficiency | 98.80% |
| PV Input | 1100V / 3 MPPT / 32A per MPPT |
| DC Oversizing | 150% |
| Protection | IP66 outdoor / Type II SPD / Fuse-free |
| Communication | RS485, WiFi, 4G, ShinePhone |
The Growatt MID 25-40KTL3-X series is a three-phase grid-tied inverter designed for commercial and industrial solar installations. Available in power capacities from 25kW to 40kW (25kW, 30kW, 36kW, 40kW), it delivers high performance and reliability for small to medium-scale commercial projects.
Featuring 3 independent MPPTs with support for up to 6 PV strings, the MID series significantly reduces energy loss caused by shading and module mismatch. With 98.8% maximum efficiency, 150% DC oversizing, and a wide 180-1000V MPPT voltage range, the inverter starts working earlier in the morning and switches off later in the afternoon, achieving longer operation time to harvest more solar energy.
Maximize energy harvest, reduce system losses
Flexible array design, reduce shading losses
Install anywhere, no equipment room required
Maximize solar harvest, lower LCOE
Eliminates fuse replacement, improves reliability
ShinePhone, ShineServer, OSS remote diagnostics
Arc fault protection for enhanced fire safety
| Model | MID 25KTL3-X | MID 30KTL3-X | MID 36KTL3-X | MID 40KTL3-X |
| Rated AC Power (kW) | 25 | 30 | 36 | 40 |
| European Efficiency (%) | 98.3 | |||
| MPPT Voltage Range (V) | 180-1000 | |||
| Start-up Voltage (V) | 180 | |||
| Number of MPPTs | 3 | |||
| Number of Strings | 6 | |||
| Max Input Current per MPPT (A) | 32 | |||
| DC Oversizing (%) | 150 | |||
| AC Nominal Voltage (V) | 380/400 | |||
| AC Frequency (Hz) | 50/60 | |||
| Rated Output Current (A) @400V | 36.1 | 43.3 | 52 | 57.7 |
| Ingress Protection | IP66 | |||
| Operating Temperature (°C) | -30 to +60 | |||
| Cooling | Smart fan | |||
| DC Switch | Integrated | |||
| Communication | RS485, WiFi, 4G | |||
The MID 25-40KTL3-X series features 3 independent MPPTs with 6 PV strings (2 strings per MPPT). This design significantly reduces energy loss caused by shading effects and module mismatch.
1100V DC – allowing longer PV strings, reducing combiner boxes and cable costs.
Yes. The inverter has an IP66 ingress protection rating, making it dust-tight and waterproof. It can be installed outdoors without an equipment room.
