    SAJ H2 HV Split Phase Hybrid Inverter

    The SAJ H2 High-Voltage Split Phase Hybrid Inverter is purpose-built for residential solar storage systems, delivering 120/240V split phase output without the need for an external transformer across a power range of 5kW to 12kW.

    Output Power 5-12kW (5/7.6/8.6/10/12kW)
    Output Voltage 120/240V Split Phase
    Number of MPPTs 3-4 (3 for 5/7.6kW, 4 for 8.6/10/12kW)
    MPPT Voltage Range 90-550V
    Max. PV Input Current 16A per MPPT (supports high-power modules)
    Battery Voltage Range 85-450V (High-voltage lithium battery)
    Inquire Now

    Description

    SAJ residential hybrid inverter banner – smart energy storage system installed in modern home, providing whole-home backup power and intelligent energy management for sustainable living

    Product Introduction

    The series supports up to 4 MPPTs (16A per MPPT) to maximize solar harvest from ultra-high-power PV modules and features a peak power capability of 1.5 times rated power to handle motor-type loads like air conditioners and water pumps.

    With 120/240V split-phase output without the need for an auto-transformer,fast battery charging (up to 50A),and compatibility with high-voltage lithium batteries (supporting up to 87.6kWh of storage),the H2 HV series offers a comprehensive energy solution for modern American homes

    Target Applications

    US residential solar storage systems (120/240V split-phase)

    Whole-home backup power solutions

    Modern high-voltage battery systems (up to 87.6kWh)

    Homes with existing lithium or lead-acid batteries

    Features

    ⚡ Whole-Home Backup,No Transformer Needed

    Delivers 120/240V split-phase output directly without the need for an external auto-transformer, simplifying installation and reducing system costs

    ☀️ Optimized Solar Energy Harvesting

    Equipped with up to 4 MPPTs (3 for 5/7.6kW models,4 for 8.6/10/12kW models) and 16A PV input current per MPPT, supporting ultra-high-power PV modules for maximum energy capture

    💪 Peak Power for Motor Loads

    Features 1.5 times rated peak power capability,ensuring reliable starting and operation of motor-type loads such as air conditioners, refrigerators,and water pumps

    🔋 Fast & Flexible Battery Management

    Supports up to 50A battery charging current for rapid charging and is compatible with up to 4 battery modules (up to 87.6kWh total capacity),providing flexible and scalable energy storage

    🔄 Seamless UPS Transition

    Built-in UPS function ensures seamless transition to battery power during grid outages,keeping critical household loads running without interruption

    🛡️ Advanced Safety & Protection

    Integrated AFCI (Arc Fault Circuit Interrupter) and RSD (Rapid Shutdown Device) protection,along with 1.5x peak power capability,ensure system safety and compliance with modern PV safety standards

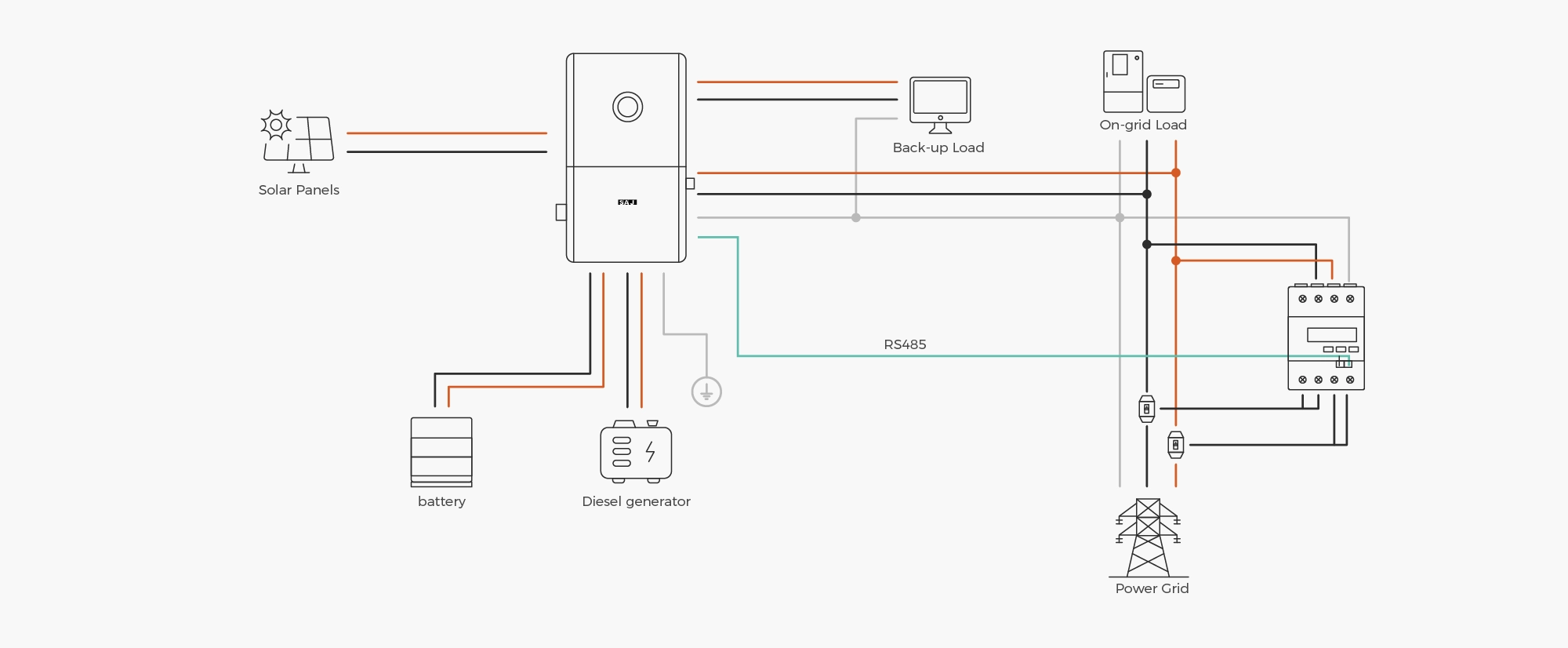

    FOR SPLIT-PHASE Connection diagram

    SAJ H2 split phase hybrid inverter system connection diagram – complete wiring topology for 120/240V US residential solar storage, showing PV array input, battery bank connection, generator input, backup load panel, grid connection, and communication links for whole-home backup power

    Technical Data

    Elemental Composition

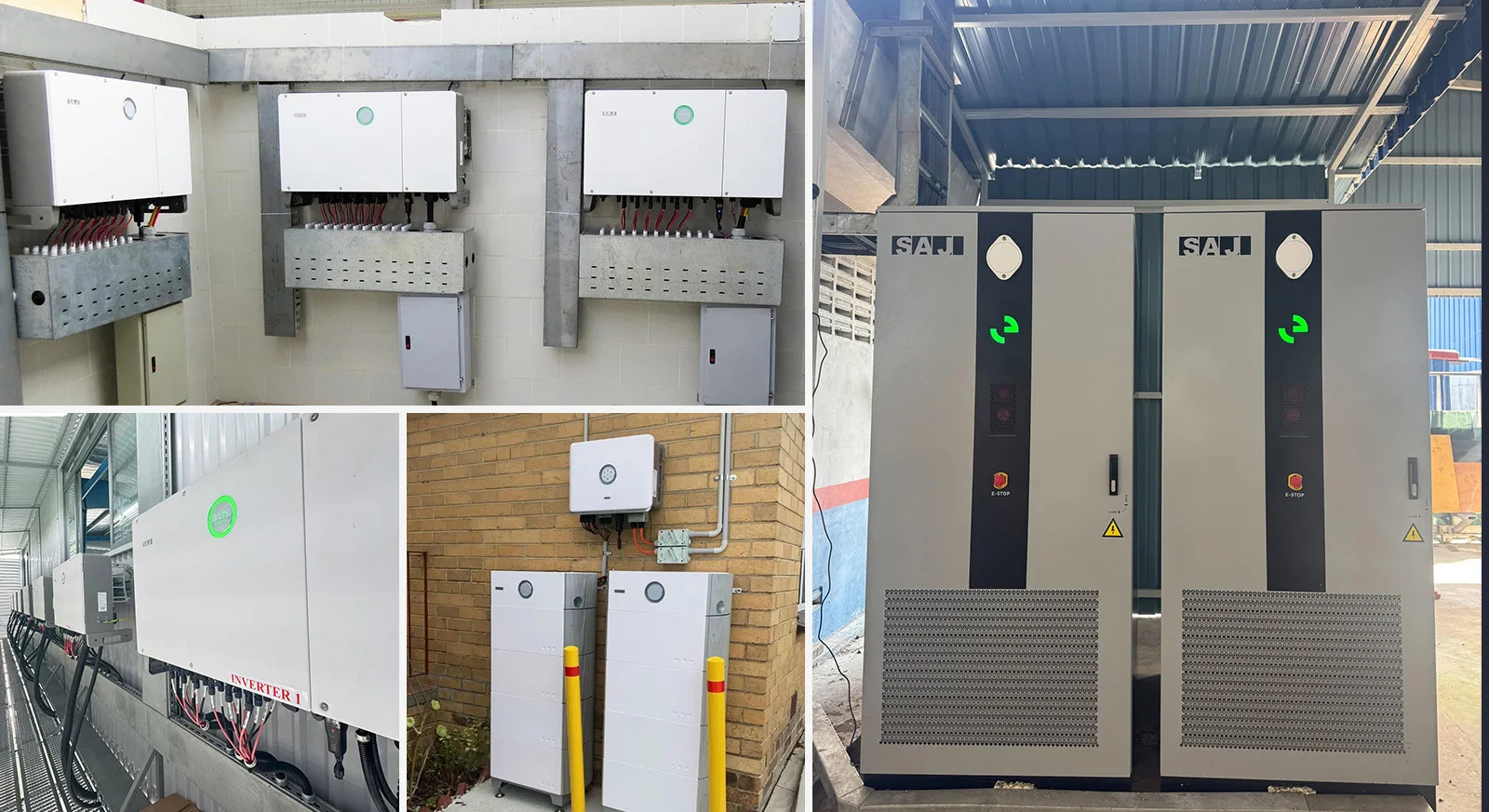

    SAJ hybrid inverter indoor installation case – utility room setup with 200A transfer relay and UPS functionality, providing seamless backup power for critical home loads
