460W full black mono solar panel with 23% high efficiency. N-Type TOPCon 108 half-cells. 25-year product warranty. Ideal for home rooftop, balcony, and residential PV in Europe. TUV certified.
| Dimensions | 1762 × 1134 × 30 mm |
| Weight | 24.5 kg (54 lbs) |
| Cell | 182mm N-Type TOPCon, 96 Half-Cells (6×8) |
| Certifications | IEC61215, IEC61730, TUV, CE, ISO |
| Warranty | 25-Year Product, 30-Year Linear Power |
| Packaging | 36 pcs/pallet, 936 pcs/40HQ |

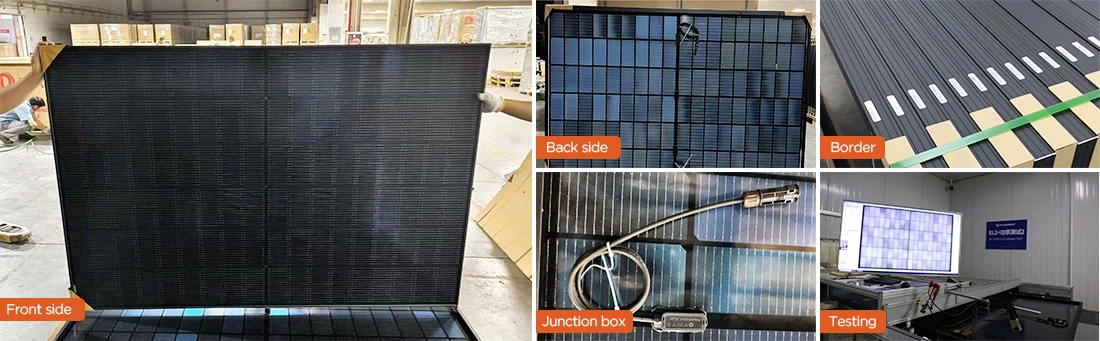

All-black design with black frame, black backsheet, and black cells – seamless integration with dark rooftops. 460W output with 23% module efficiency. N-Type TOPCon technology delivers more energy per square meter. 1762×1134mm standard dimension – fits perfectly on European residential roofs and balcony railings.
5400Pa snow load, 2400Pa wind load, IP68 junction box. Built for European weather conditions. TUV, IEC61215, IEC61730, CE certified. Compliant with EU building and safety standards. 36 pcs/pallet, 720 pcs per 40HQ. Fast shipping from EU warehouse.
The all-black appearance is crafted for homeowners who care about curb appeal. Black anodized aluminum frame, black backsheet, and deep-black cells create a uniform, premium look that blends perfectly with dark roof tiles. No silver frames, no white gaps – just clean energy with clean aesthetics.
Powered by next-generation N-Type TOPCon cells with G12R (182×210mm) wafers in 96 half-cells (6×8) configuration. Higher efficiency than traditional P-Type PERC panels means you generate more power from limited roof space – critical for European homes with smaller rooftops.
At 1762mm long and 1134mm wide, our 460W panel matches the standard dimension widely adopted by leading European installers. It fits perfectly on:
Residential rooftops – standard width aligns with most roof tiles
Balcony power plants (Balkonkraftwerk) – fits standard balcony railing mounts
Carports and garages – easy to handle, easy to install
N-Type TOPCon cells excel in low-light conditions – perfect for European weather with frequent clouds, morning fog, and winter overcast. Earlier sunrise capture and later sunset production mean more daily energy, especially during short winter days.
| Parameter | 450W | 455W | 460W | 465W | 470W |
| Cell Type | N-Type TOPCon (TNC) | ||||
| Cell Size | 182×210mm (G12R) | ||||
| Cells | 96 half-cells (48×2) | ||||
| Pmax (W) | 450 | 455 | 460 | 465 | 470 |
| Module Efficiency (%) | 22.5 – 22.8 | 22.8 – 23.0 | 23.0 – 23.2 | 23.2 – 23.5 | 23.5 – 23.8 |
| Vmp (V) | 29.8 – 30.3 | 30.0 – 30.5 | 30.3 – 30.7 | 30.5 – 31.0 | 30.8 – 31.2 |
| Imp (A) | 15.1 | 15.14 | 15.18 | 15.22 | 15.26 |
| Voc (V) | 35.9 – 36.1 | 36.1 – 36.2 | 36.2 – 36.4 | 36.4 – 36.6 | 36.5 – 36.7 |
| Isc (A) | 15.81 | 15.85 | 15.89 | 15.92 | 15.95 |
| Temperature Coefficient (Pmax) | -0.26 to -0.30%/°C | ||||
| Max System Voltage | 1500V DC | ||||
| Max Series Fuse | 25-30A | ||||
| *STC: Irradiance 1000W/m², Cell Temperature 25°C, AM1.5 | |||||
Yes. The 1762mm length and 1134mm width fit standard balcony railing mounts. Check local regulations – in Germany, plug-and-play balcony systems are limited to 800W total output, so you may need to use only part of the panel's potential or pair with a suitable microinverter.
Full black panels have a black frame, black backsheet, and black cells – a unified dark appearance. Silver frame panels have a silver aluminum frame and white backsheet. Full black is purely aesthetic and typically costs slightly more. Many European homeowners prefer full black for roof installations.
96 half-cell panels (like our 460W) are built on G12R (182×210mm) wafers and measure 1762mm. 108 half-cell panels use M10 (182×182mm) wafers and are shorter (~1722-1757mm). Both produce similar power. Our 1762mm version is the standard adopted by Jinko, Trina, and JA Solar.
