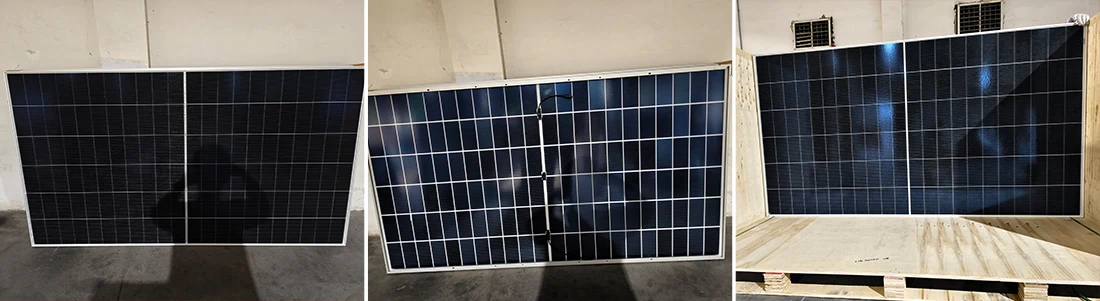

730W N-Type TOPCon bifacial solar panel with 23.5% efficiency. 210mm 132 half-cells, 85% bifaciality, -0.29%/°C. 30-year warranty. For utility solar farm & commercial rooftop
| Dimensions | 2384 × 1303 × 33 mm |
| Weight | 38.5 kg (85 lbs) |
| Cell | 210mm N-Type TOPCon, 132 Half-Cells |
| Certifications | IEC61215, IEC61730, TUV, CE, ISO |
| Protection | IP68 Junction Box, 5400Pa Snow, 2400Pa Wind |
| Packaging | 33 pcs/pallet, 594 pcs/40HQ |
The solar industry has shifted. N-Type TOPCon is now the mainstream technology for utility-scale projects, and 730W represents the highest power tier available today. Leading manufacturers like Astronergy (ASTRO N8), Canadian Solar (TOPBiHiKu7), and Credence Solar have all launched 730W TOPCon modules – and ours meets the same rigorous standards.
⚡Higher power per panel Fewer panels needed – less labor, faster installation
📏210mm wafer format Proven G12 platform with global supply chain
🔆 85% bifaciality Up to 30% rear-side gain from albedo reflection
🌡️-0.30%/°C temp coefficient Better performance in hot climates (Texas, Arizona, Caribbean)
📜30-year warranty Aligns with project finance timelines
💰Lower LCOE Reduced BOS cost, higher IRR for investors
Our 730W module uses advanced N-Type TOPCon (Tunnel Oxide Passivated Contact) cell technology with 18BB (multi-busbar) design, achieving 23.5% front-side module efficiency – among the highest for 210mm wafer-based modules.
Why this matters: More power per square meter means fewer panels, less racking, less land, and lower installation costs for your solar farm.
With 85% bifaciality (industry-leading for TOPCon), the rear side captures reflected sunlight from ground, white roofs, snow, or sand.
Mounting Type Albedo Estimated Bifacial Gain Effective Power
Ground mount (grass) 20% +15-18% ~840-860W
Ground mount (sand/gravel) 30-40% +18-25% ~860-910W
White membrane roof 60-70% +25-30% ~910-950W
Tracker system Any +25-35% ~910-985W
210mm wafers – Industry standard G12 format
132 half-cells – 66 cells × 2 halves, arranged in 6×22 matrix
18BB (multi-busbar) – Improved current collection, lower series resistance
Lower internal losses – Better module reliability and performance
Solar panels lose power as they heat up. Our TOPCon panels feature an industry-leading -0.30%/°C temperature coefficient (vs PERC at -0.35%/°C).
On a 65°C (149°F) summer day (typical for rooftop or desert installations):
TOPCon 730W produces ~650W (11% loss)
PERC 650W produces ~560W (14% loss)
TOPCon delivers 3-5% more annual energy in hot regions – critical for projects in Texas, Arizona, Florida, Mexico, the Caribbean, and the Middle East.
| Parameter | 710W | 715W | 720W | 725W | 730W |
| Cell Type | N-Type TOPCon | ||||
| Cell Size | 210mm | ||||
| Cells | 132 half-cells | ||||
| Busbars | 18BB | ||||
| Pmax (W) | 710 | 715 | 720 | 725 | 730 |
| Module Efficiency (%) | 22.9 | 23.1 | 23.2 | 23.4 | 23.5 |
| Vmp (V) | 41.8 | 42 | 42.2 | 42.4 | 42.5 |
| Imp (A) | 16.99 | 17.02 | 17.06 | 17.1 | 17.18 |
| Voc (V) | 50.2 | 50.4 | 50.6 | 50.8 | 51 |
| Isc (A) | 17.95 | 18 | 18.05 | 18.12 | 18.2 |
| Bifaciality (%) | 85 | ||||
| Temp Coef (Pmax) | -0.30%/°C | ||||
| Temp Coef (Voc) | -0.25%/°C | ||||
| Temp Coef (Isc) | +0.045%/°C | ||||
| Max System Voltage | 1500V | ||||
| Max Series Fuse | 30A | ||||
| Power Tolerance | 0~+3% | ||||
| *STC: Irradiance 1000W/m², Cell Temperature 25°C, AM1.5* | |||||
Solvic-700-730w-Solar-Module-Datasheet
Front-side module efficiency ranges from 23.1% to 23.8% depending on the specific model and manufacturer. For comparison: 730W: ~23.5% efficiency 735W: ~23.7% efficiency 740W: ~23.8-23.9% efficiency
Each 730W panel (2384×1303mm) covers approximately 3.1m² (33.4 sq ft) . For 1MW (~1,370 panels): Active panel area: ~4,250m² (45,750 sq ft) Total land area including spacing: ~8,500-10,000m² (2-2.5 acres)
Use 1500V string inverters with per-string current capacity >20A (e.g., Sungrow SG250HX, SMA Sunny Central, Huawei SUN2000). Key electrical parameters for system design: Vmp: ~41-42V per panel Imp: ~17.2-17.7A per panel Voc: ~49-50V per panel Isc: ~18.2-18.7A per panel
