HA 600V 1-in-1-out DC combiner box for solar PV systems. IP65 outdoor rating, 32A rated current, 20kA SPD, wall mount. Compact size for residential and commercial solar installations.
| Type | 1-in-1-out DC combiner box |
| Rated Voltage | 600V DC |
| Rated Current | 32A |
| P Rating | IP65 outdoor |
| SPD | 20kA/40kA, Type II, 3.5kV Up |
| Mounting | Wall mount |

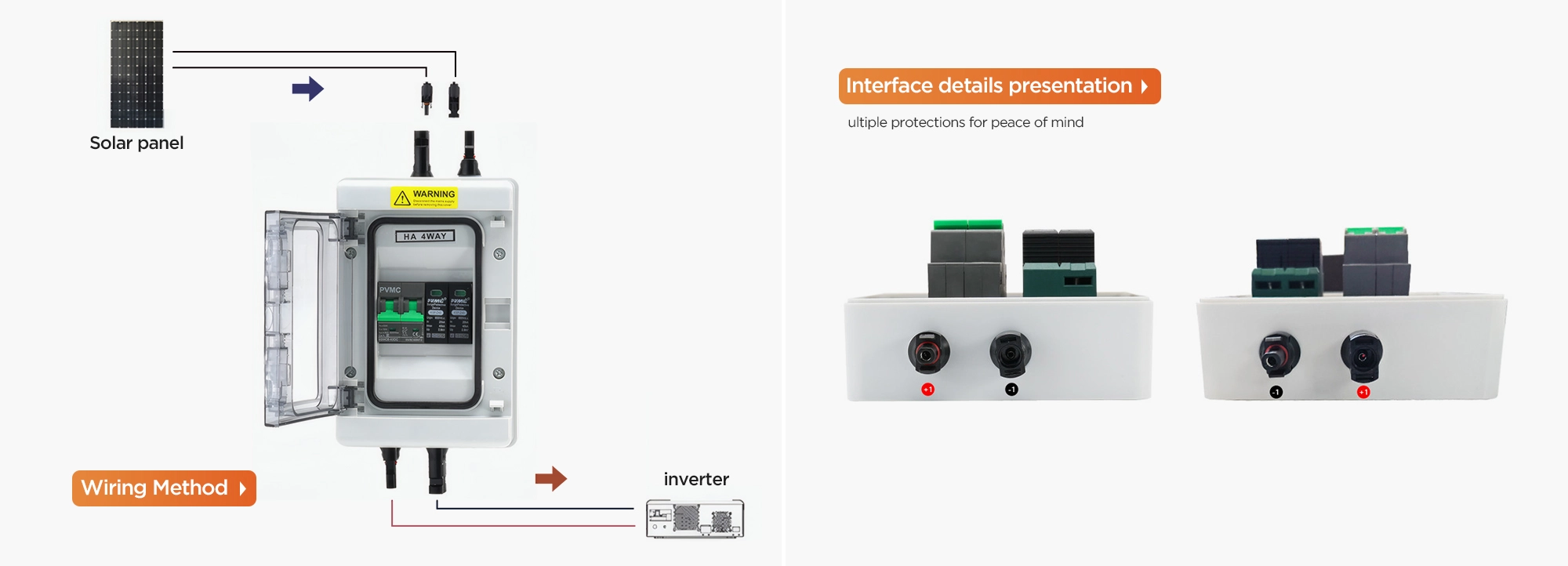

The HA 600V 1-in-1-out DC combiner box is designed for small to medium solar PV systems. It provides a safe and reliable connection between PV strings and inverters. With IP65 outdoor rating, it can be installed directly on rooftops or exterior walls without additional protection.

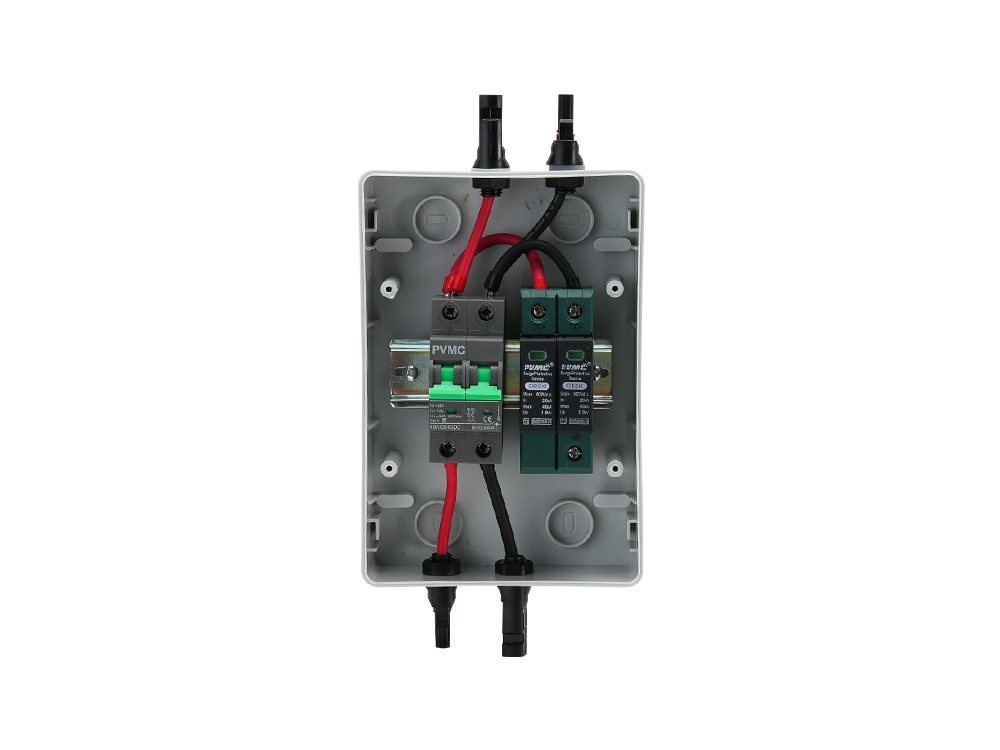

This combiner box features a built-in Type II surge protection device (SPD) with 20kA nominal discharge current and 40kA maximum discharge current, protecting your inverter and downstream equipment from lightning strikes and voltage surges. The compact wall-mount design measures only 28×24×10cm and weighs just 1kg, making installation quick and easy.
compatible with most residential and small commercial PV systems
supports up to 8kW of PV power at typical string voltages
weatherproof for rooftop and outdoor installation
20kA/40kA surge protection, 3.5kV voltage protection level
no fuse replacement required, lower maintenance
28×24×10cm, only 1kg, easy to mount
| Type | 1-in-1-out DC combiner box |
| Rated Voltage (DC) | 600V |
| Rated Current (DC) | 32A |
| Max Input Current | 40A |
| Number of Inputs / Outputs | 1/1 |
| Surge Protection Type | Type II (SPD) |
| Voltage Protection Level (Up) | 3.5 kV |
| Nominal Discharge Current (In) | 20 kA (8/20μs) |
| Max Discharge Current (Imax) | 40 kA (8/20μs) |
| Ingress Protection | IP65 (outdoor rated) |
| Enclosure Material | PC/ABS flame retardant |
| Fuse | Fuse-free |
| Mounting | Wall mount |
| Dimensions (W×H×D) | 280 × 240 × 100 mm |
| Weight | 1 kg |
| Operating Temperature | -25°C to +60°C |
| Recommended Input Cable | 4mm² (12 AWG) PV cable |
| Recommended Output Cable | 6mm² (10 AWG) PV cable |
| Application | Solar PV, off-grid, energy storage |
A DC combiner box safely connects PV strings to the inverter. It provides surge protection, overcurrent protection (optional), and a centralized connection point for solar installations.
This model is designed for single-string systems where fuses are not required by code (NEC 2017/2020 allows fuse-free for 1-2 strings). It reduces cost and maintenance. For multi-string systems, consider our 2/4/8-input models with individual string fuses.
SPD (surge protection device) is highly recommended and required by many local codes (NEC 2020 Section 690.12). It protects your inverter from lightning strikes and voltage surges.
