4 string solar pv combiner box for sale, with maximum output voltage DC1000V, maximum output current 60A.
| DC circuit breaker | 4P-80A | 1 |
| Surge protector | 3P-40KA | 1 |
| Copper bars / wire materials | Special for photovoltaic applications | 1 |
| Waterproof connector | PG9 PG21 | 11 |
| DC fuse | 1P-20A | 8 |
| Anti-reverse diode | 70A-1600V | 2 |
Solar power combiner box supports up to four PV array inputs (strings), with each string capable of handling a maximum current of 15A. The combiner box is equipped with 20A fuses for each PV array to ensure safe operation and protection against overcurrents. Each PV array connection is designed for a cable size of 4mm², with PG7 cable glands, ensuring a secure and reliable connection. The photovoltaic combiner box offers flexible output options with either one or two output channels, supporting a maximum output current of 60A.
The output for each circuit is facilitated through PG16 cable glands, accommodating a cable size of 10mm² per string. This string combiner box can handle a maximum output voltage of DC 1000V, It includes a DC output circuit breaker, Additionally, the unit comes with a built-in lightning protection device, safeguarding the system from voltage surges typically caused by lightning strikes.
Two independent PV array inputs/outputs, allowing flexible application in different connection schemes
Multiple PV array inputs with a maximum current of 15A for each single-input array
Each PV array includes high-voltage fuse protection and anti-backflow protection
Equipped with a dedicated high-voltage surge protection device for PV systems
Controlled output through a dedicated high-voltage circuit breaker for PV systems

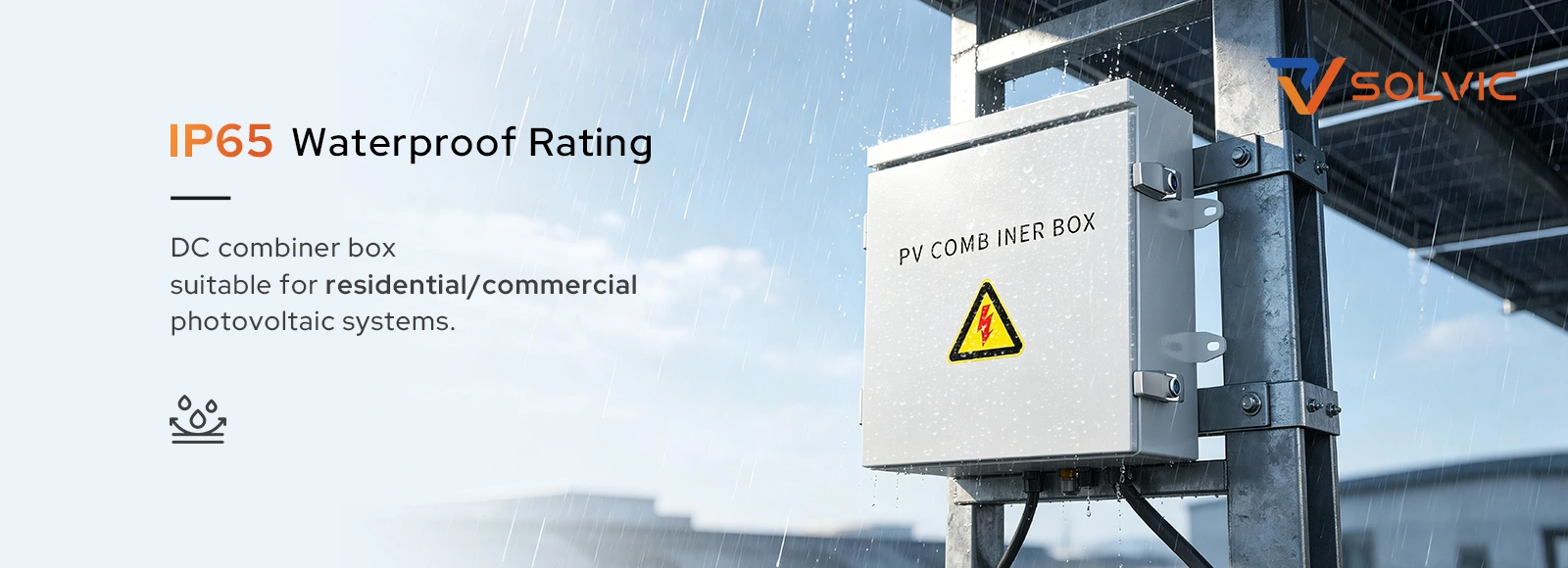

Suitable for outdoor installation, with a protection rating of IP65, ensuring dust and water resistance

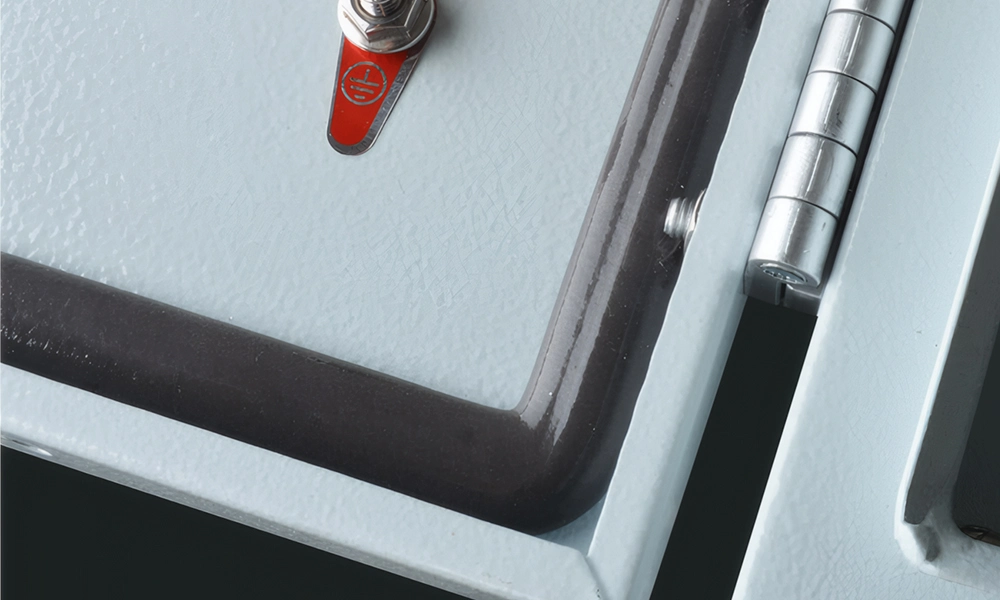

High-density rebound rubber strip, with strong sealing performance, long-lasting durability and excellent waterproofing ability.

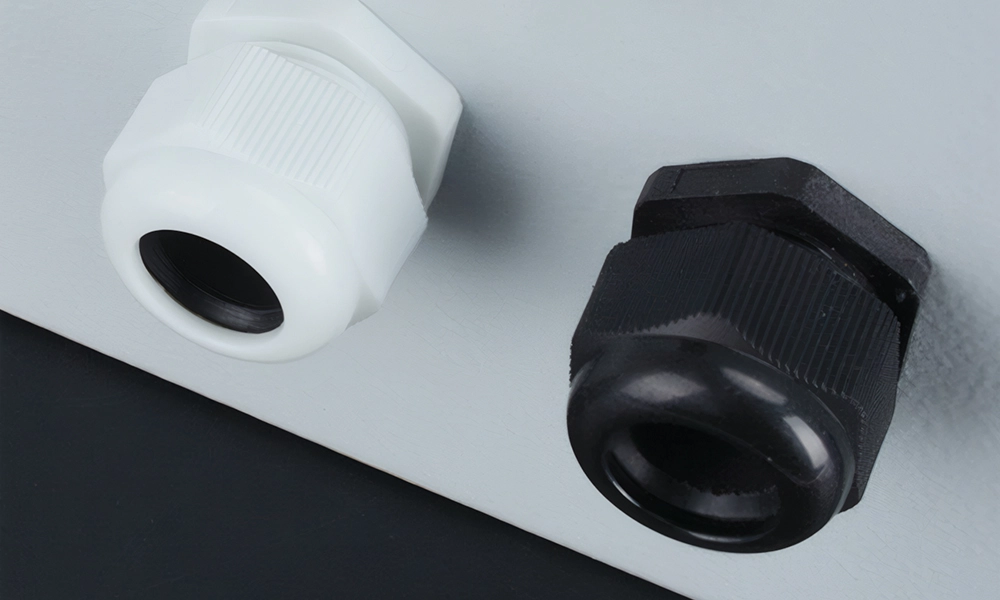

Using a high-strength waterproof ring results in better waterproof and dustproof performance.

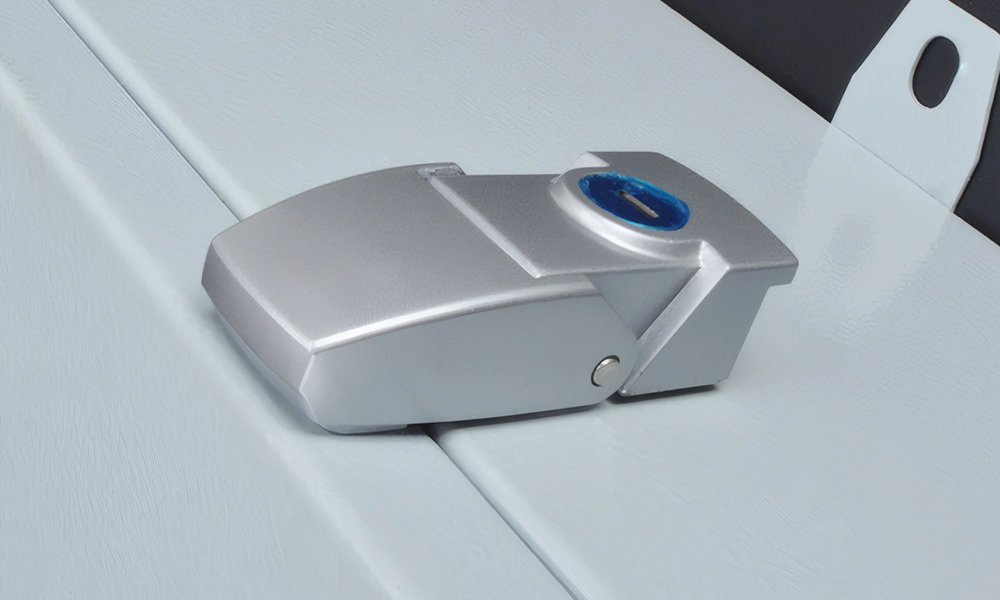

It can achieve better rainproof, waterproof and dustproof effects, and comes with a standard key.
Model
Interface
Dimensions (mm)
Packaging dimensions (mm)
Net weight (kg)
Gross weight (kg)
DXV-2-1
2 in 1 out
400*400*180
420*420*200
10
13
DXV-3-1
3 in 1 out
400*400*180
420*420*200
11
14
DXV-4-1
4 in 1 out
440*400*180
460*420*200
12
15
DXV-5-1
5 in 1 out
500*400*180
520*420*200
14
16
DXV-6-1
6 in 1 out
500*400*180
520*420*200
15
17
DXV-7-1
7 in 1 out
500*400*180
520*420*200
16
17
DXV-8-1
8 in 1 out
600*460*180
620*480*200
18
21
DXV-10-1
10 in 1 out
700*460*180
720*480*200
23
25
DXV-12-1
12 in 1 out
750*460*180
770*480*200
25
27
| Model | DXV-8-1 | DXV-12-1 | DXV-16-1 | DXV-18-1 | DXV-20-1 | DXV-24-1 |
| Maximum branch | 8 | 12 | 16 | 18 | 20 | 24 |
| Maximum branch current (A) | 15 | 15 | 15 | 15 | 15 | 15 |
| Maximum output current (A) | 125 | 160 | 200 | 400 | 400 | 400 |
| Voltage range (VDC) | 500/1000/1500Vdc | |||||
| Fuse Specifications | Photovoltaic-specific fuse, rated voltage 500/1000/1500V, rated current 20A | |||||
| Circuit breaker specifications | Photovoltaic dedicated circuit breaker, rated voltage 500/100/1500V | |||||
| Diode Specifications | 70A/1600V | 70A/1600V | ||||
| Operating temperature range | -40°C~+60°C | |||||
| Protection level | IP65 | |||||
| altitude | <3000m | |||||

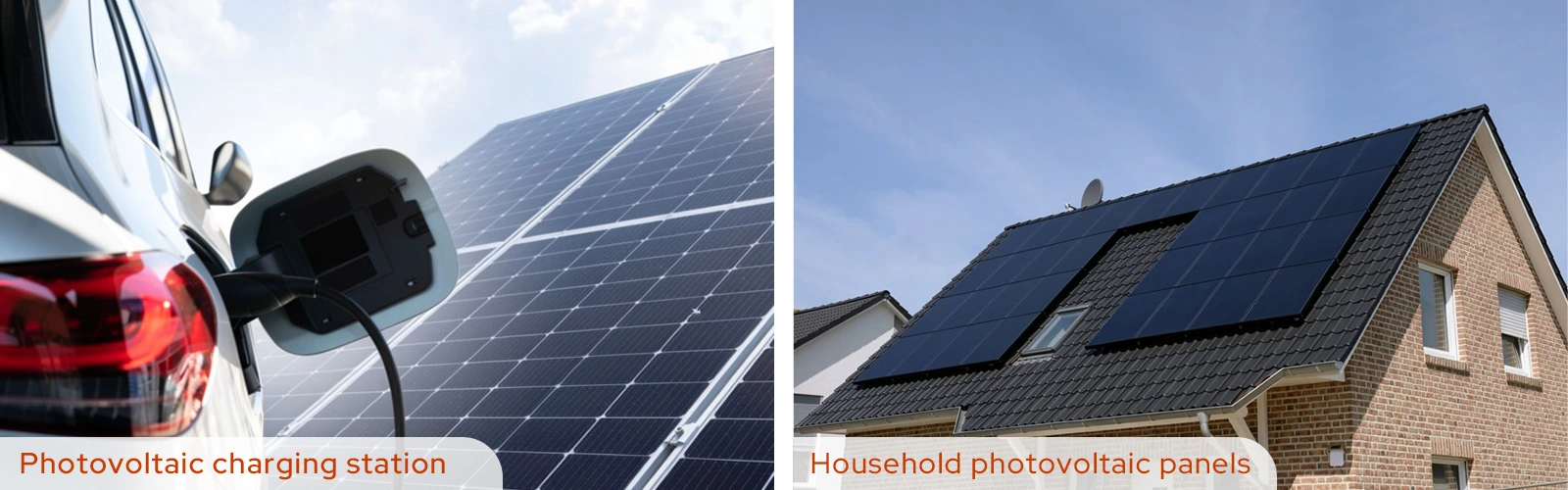

DC junction box, suitable for both residential and industrial/ commercial photovoltaic systems, providing one-stop protection for the safe operation of the photovoltaic system.
When the PV grid-connected power is 1KW, the required wire number is 2.5mm2; when the PV grid-connected power is 3KW, the required wire number is 4mm2; when the PV grid-connected power is 5KW, the required wire number is 6mm2. In addition, the PV grid-connected power is also related to the length of the cable, and when the length of the cable is more than 50 meters, the wire number needs to be increased in order to ensure the normal operation of the system.
Expansion is limited by the number of strings the combiner box can handle; for more than four strings, additional combiner boxes or a larger one may be needed.
Input: 4mm² (12 AWG) PV cable per string Output: 6mm² (10 AWG) PV cable per output
