600V DC combiner box series available in 2-in-1-out and 2-in-2-out configurations. IP65 outdoor rated, 32A, SPD protection, fuse-free. For residential and commercial solar PV systems.
| Type | 2-in-1-out / 2-in-2-out |
| Rated Voltage | 600V DC |
| Rated Current | 32A |
| P Rating | IP65 outdoor |
| SPD | 20kA/40kA, Type II, 3.5kV Up |
| Mounting | Wall mount |

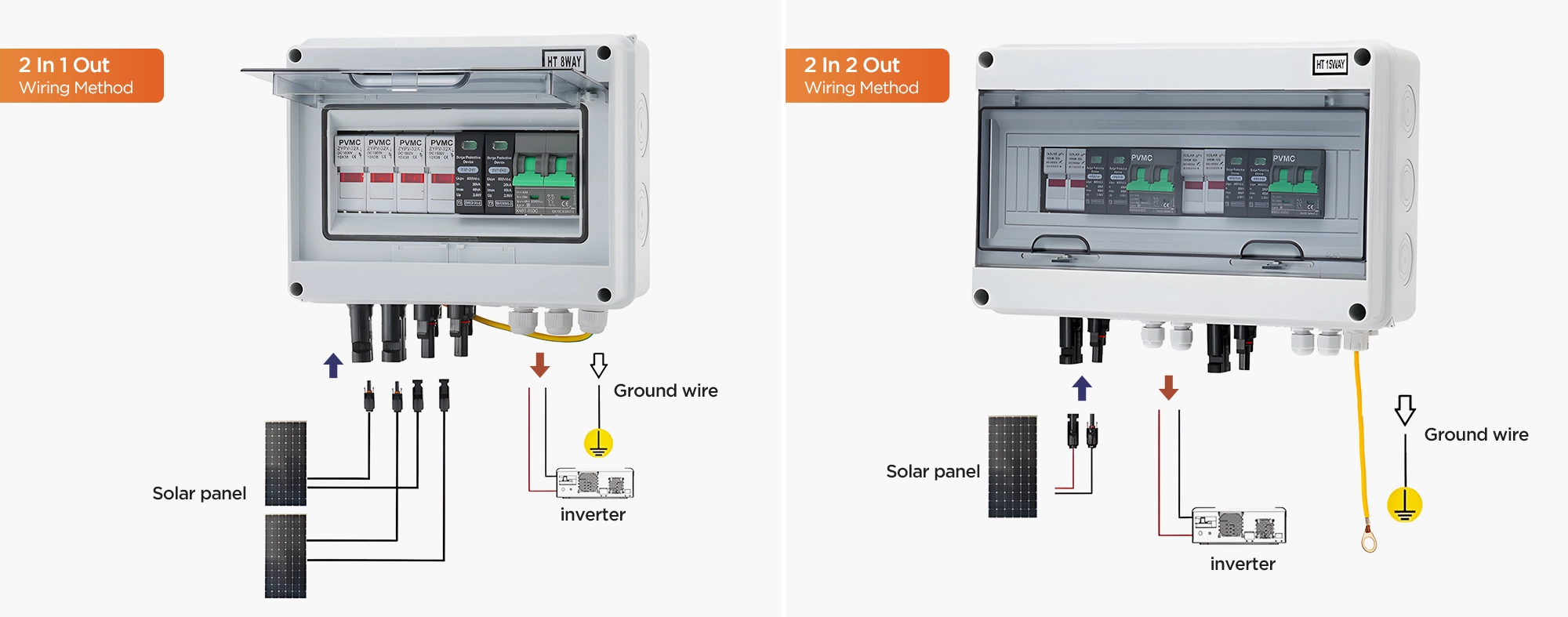

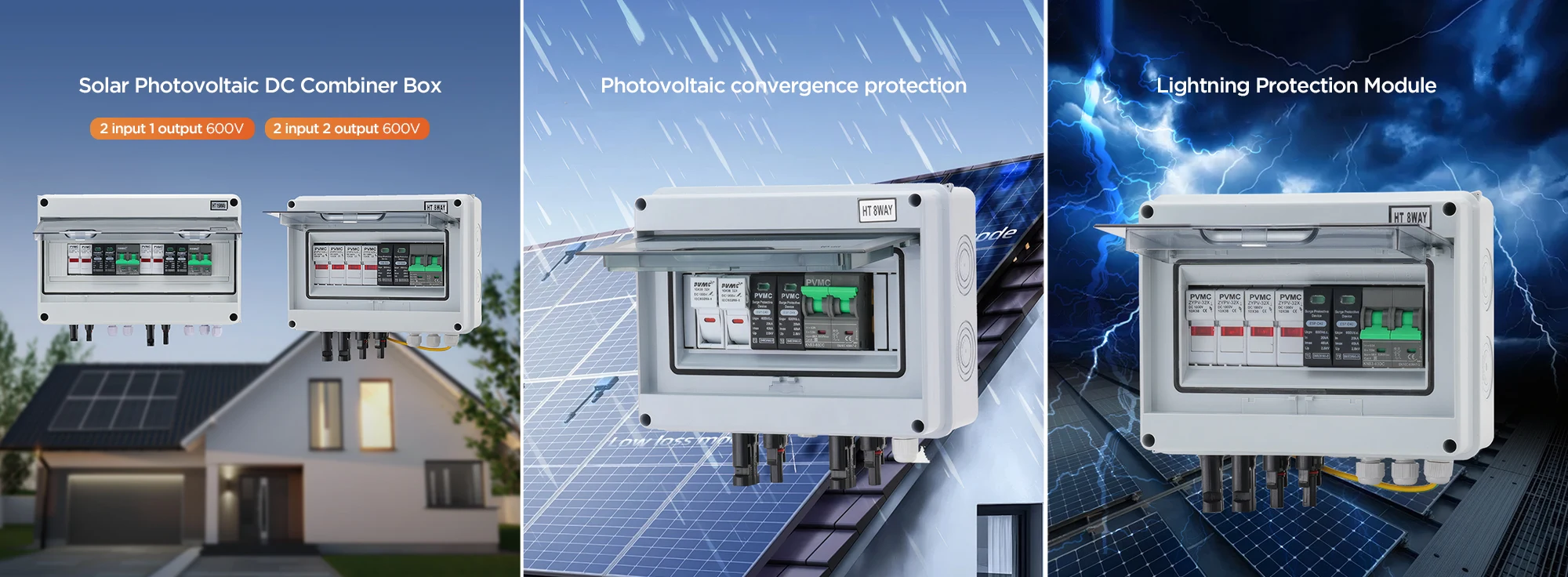

600V solar PV DC combiner box features diagram – dual mode operation: 2 input 1 output 600V and 2 input 2 output 600V, photovoltaic convergence protection, lightning protection module SPD for flexible multi-string solar systems

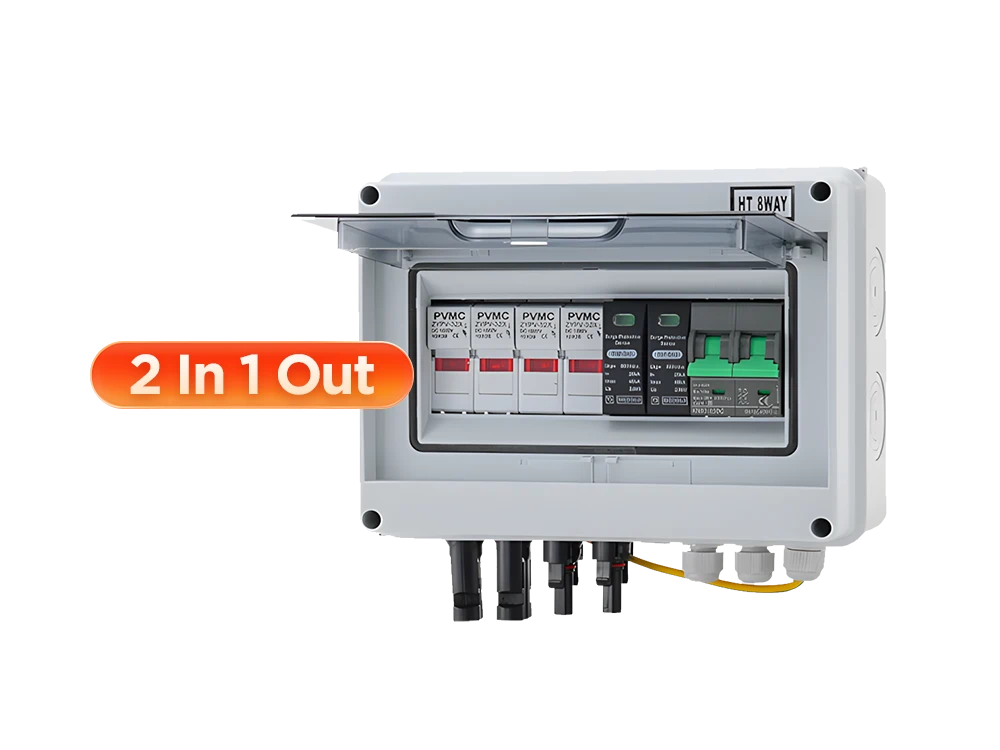

Ideal for combining two PV strings into a single output, perfect for systems with one inverter.

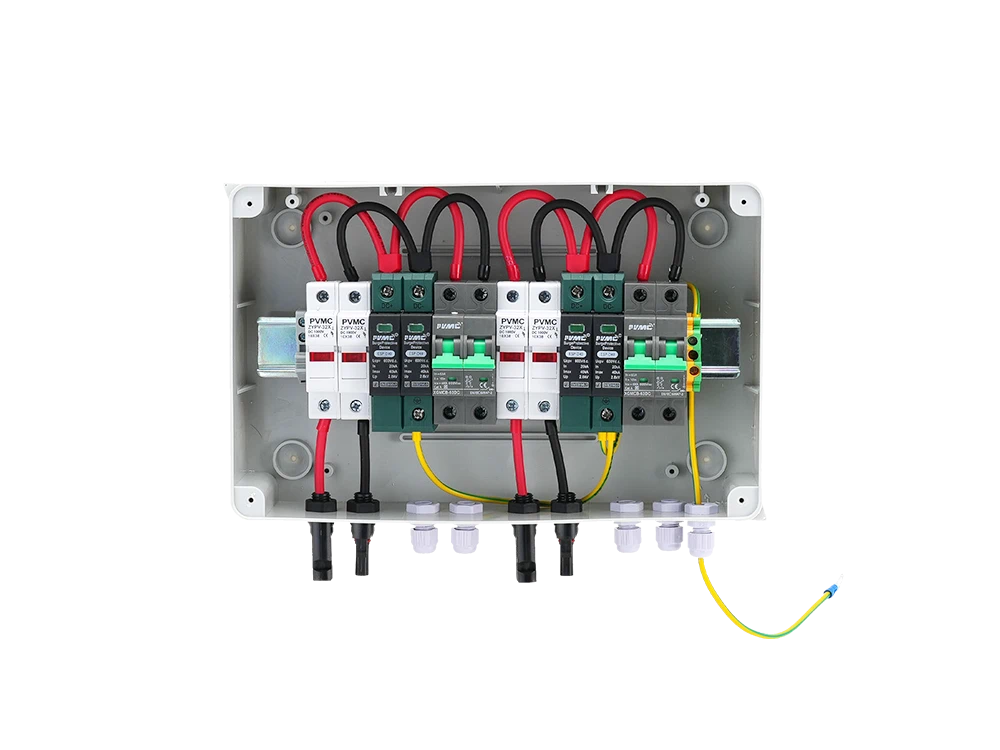

Ideal for two independent PV strings with separate outputs, perfect for systems with two inverters or when string isolation is required.
Both models feature a built-in Type II surge protection device (SPD) with 20kA nominal and 40kA maximum discharge current, protecting your equipment from lightning strikes and voltage surges.
compatible with most residential and commercial PV systems
supports standard PV strings
weatherproof for rooftop installation
20kA/40kA surge protection, 3.5kV Up
lower maintenance, no fuse replacement
easy wall-mount installation
| Parameter | 2-in-1-out Model | 2-in-2-out Model |
| Inputs / Outputs | 2 in / 1 out | 2 in / 2 out |
| Rated Voltage (DC) | 600V | 600V |
| Rated Current per Input (A) | 32A | 32A |
| Rated Output Current (A) | 64A | 32A per output |
| Max Input Current (A) | 40A per input | 40A per input |
| Surge Protection Type | Type II (SPD) | Type II (SPD) |
| Voltage Protection Level (Up) | 3.5 kV | 3.5 kV |
| Nominal Discharge Current (In) | 20 kA | 20 kA |
| Max Discharge Current (Imax) | 40 kA | 40 kA |
| Number of SPD Poles | 2P | 2P |
| Ingress Protection | IP65 | IP65 |
| Enclosure Material | PC/ABS flame retardant | PC/ABS flame retardant |
| Fuse | Fuse-free | Fuse-free |
| Mounting | Wall mount | Wall mount |
| Dimensions (W×H×D mm) | 280 × 240 × 100 | 280 × 240 × 100 |
| Weight (kg) | 1.2 | 1.2 |
| Operating Temperature | -25°C to +60°C | -25°C to +60°C |
| Recommended Input Cable | 4mm² (12 AWG) | 4mm² (12 AWG) |
| Recommended Output Cable | 10mm² (8 AWG) | 6mm² (10 AWG) |
Choose 2-in-1-out when you have two PV strings going to a single inverter. Choose 2-in-2-out when you have two PV strings going to two separate inverters, or when you want independent string isolation.
Yes. You can combine the two outputs externally. However, for a single inverter application, the 2-in-1-out model is more cost-effective.
Both models share a common SPD across all inputs/outputs. For per-output independent protection, please contact us for custom solutions.
