This double-glass module is built with 2.0 mm anti-reflection front glass and 2.0 mm heat-strengthened rear glass, paired with an anodized aluminum alloy frame.
| Model | JKM710-735N-66HL5-BDV |
| Dimensions | 2384×1303×33mm |
| Weight | 37.5 kg |
| Warranty | 30 Years |
| Lead time | 10-15 days after payment |

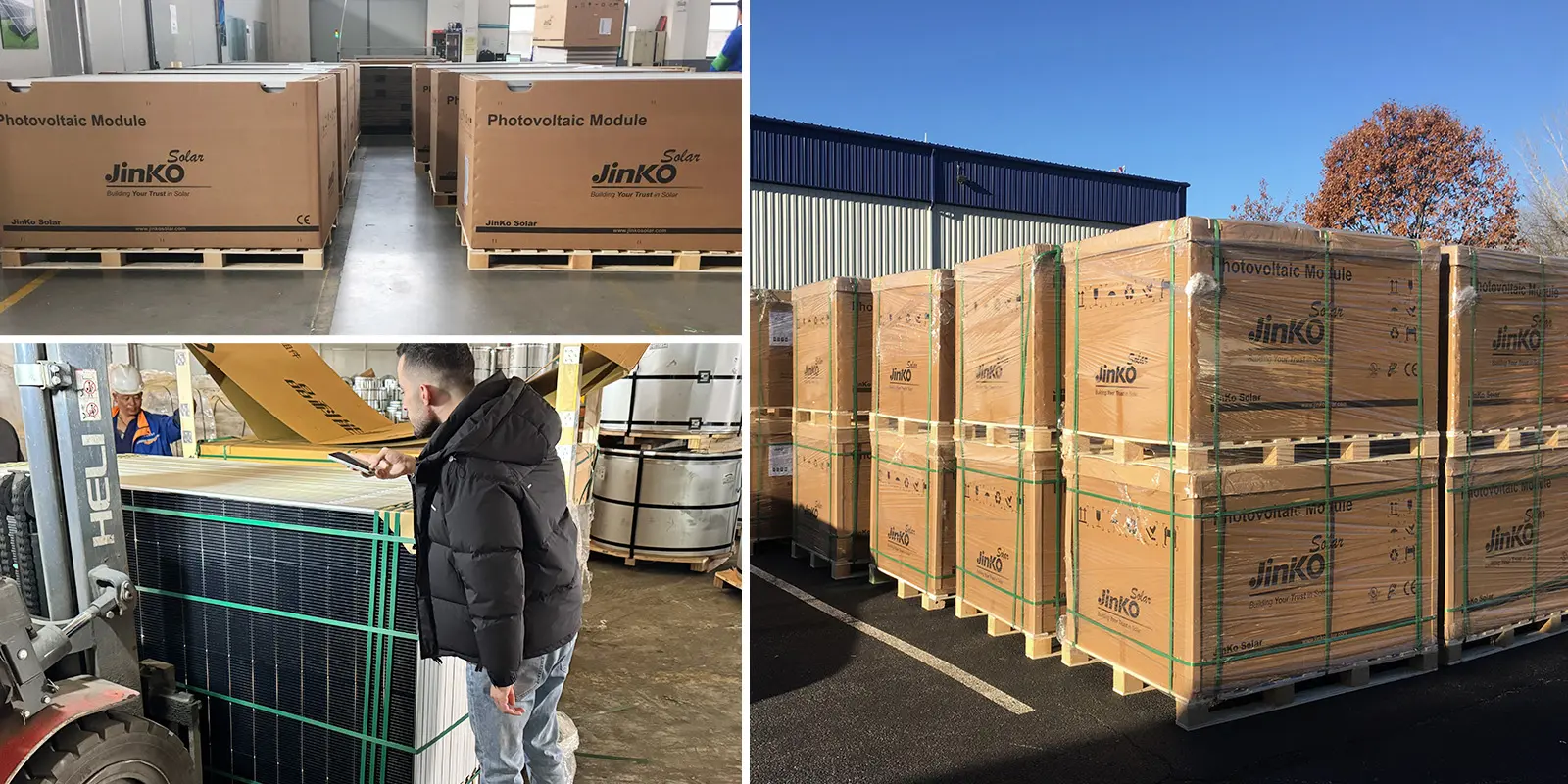

| Packaging | 33 pcs/pallet,594 pcs/40HQ |
Jinko solar panels 710W-735W are high-output N-type TOPCon bifacial modules designed for utility-scale and C&l projects that need more power per module. Dual-glasconstruction supports extra backside generation, helping improve total energy harvest.
The 710W – 735W Jinko solar module reaches up to 23.66% efficiency, uses an IP68-rated junction box. It also comes with a 12-year product warranty and a 30-year linear power warranty.
N-type modules with Tunnel Oxide Passivating Contacts (TOPCon) technology offer lower LID/LeTID degradation and better low light performance.
N-type modules with JinkoSolar’s HOT 3.0 technology offer better reliability and efficiency.
Dual-sided power generation gain increases with backside exposure to light, significantly reducing LCOE.
Certified to withstand:
5400 Pa front side max static test load
2400 Pa rear side max static test load
Better light trapping and current collection to improve output module power and reliability.
Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control.
| Maximum Power-Pmax [Wp] | 710 | 715 | 720 | 725 | 730 | 735 |
| Maximum Power Voltage-Vmp [V | 40.65 | 40.77 | 40.89 | 41.00 | 41.11 | 41.23 |
| Maximum Power Current-Imp [A] | 17.47 | 17.54 | 17.61 | 17.69 | 17.76 | 17.83 |
| Open-circuit Voltage-Voc [V] | 48.73 | 48.88 | 49.04 | 49.20 | 49.36 | 49.52 |
| Short-circuit Current-Isc [A] | 18.53 | 18.60 | 18.67 | 18.74 | 18.81 | 18.88 |
| Module Efficiency STC [%] | 22.86 | 23.02 | 23.18 | 23.34 | 23.50 | 23.66 |
| Power Sorting | 0～+3% | |||||
| Temperature Coefficient of Pmax | -0.29%/℃ | |||||
| Temperature Coefficient of Voc | -0.25%/℃ | |||||
| Temperature Coefficient of lsc | 0.045%/℃ | |||||
