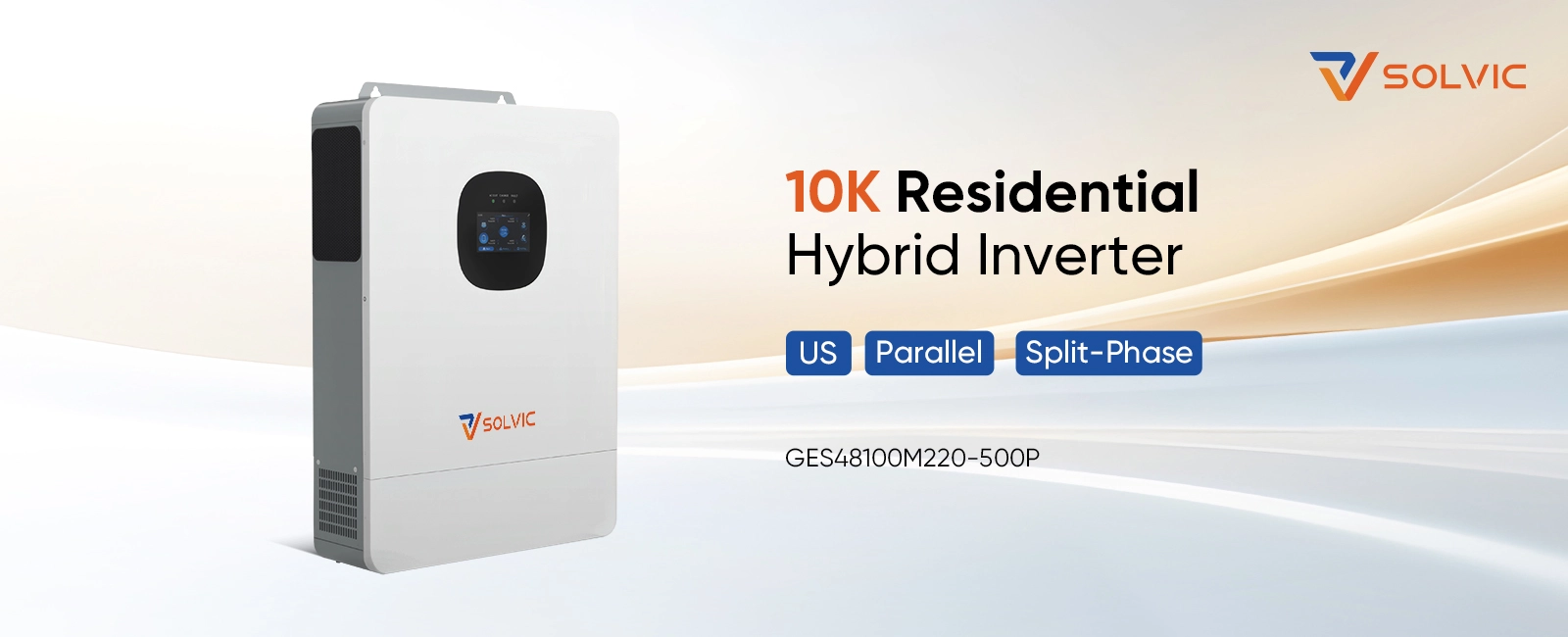

The 10KW split phase hybrid inverter delivers native 120/240V output, 20KW surge, and 500V MPPT. UL certified. 10ms UPS switch. No transformer needed. 6-unit parallel ready.
| Output Type | 120V (L1-N / L2-N) / 240V (L1-L2) Split Phase | |
| Rated Power | 10,000W / 10kW | |
| PV Input (Max) | 500Vdc / 12,000W | |
| Battery Voltage | 48V (LiFePO4 / Lead-Acid) | |
| Parallel Support | Up to 6 Units (60kW Max) | |
| Transfer Time | 10ms (UPS Mode) | |

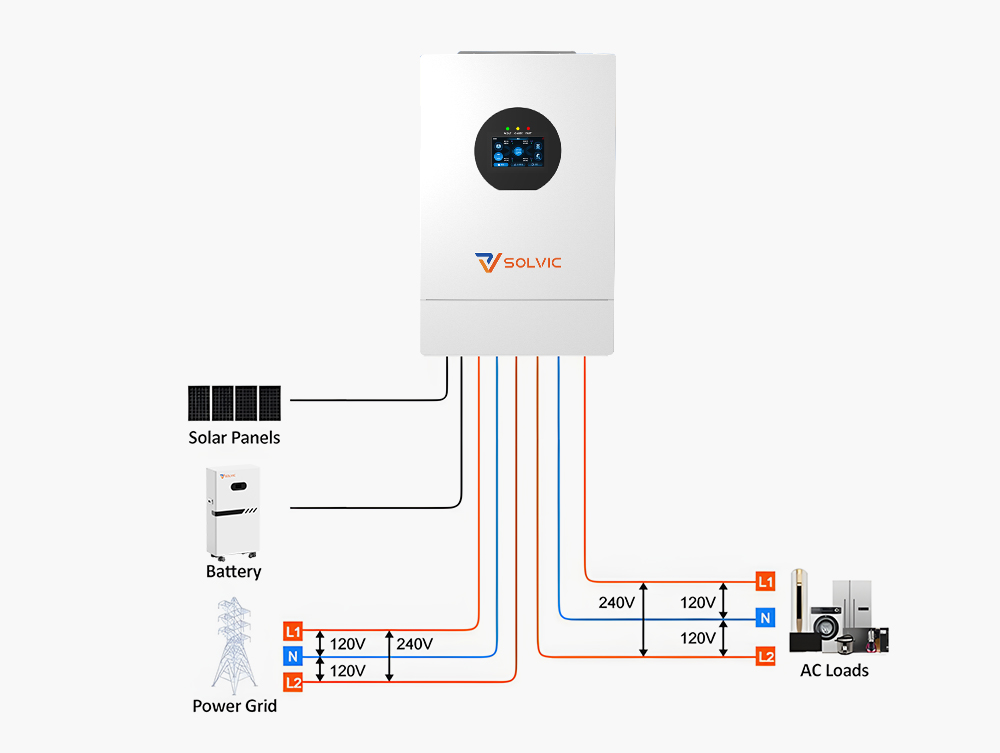

This hybrid inverter offers 120/240V split phase output for full home compatibility, eliminating the need for transformers. It features a 500VDC PV input and dual MPPT for high-efficiency solar harvesting (up to 99.9%). With a <10ms UPS transfer time, it provides seamless blackout protection. The 220A hybrid charging (PV + Grid) supports both 48V Lithium and Lead-Acid batteries. Scalable design allows up to 6 units in parallel (60KW total). Built-in CT sensor for zero-export functionality also included.
⛔CT Anti-Reverse Current + AC Coupling, Zero Export to Grid
📈150% Emergency Peak Output / 5s, Withstands Continuous Impact Loads
🔀12kW Dual-Channel MPPT, 22A/6000W per Channel

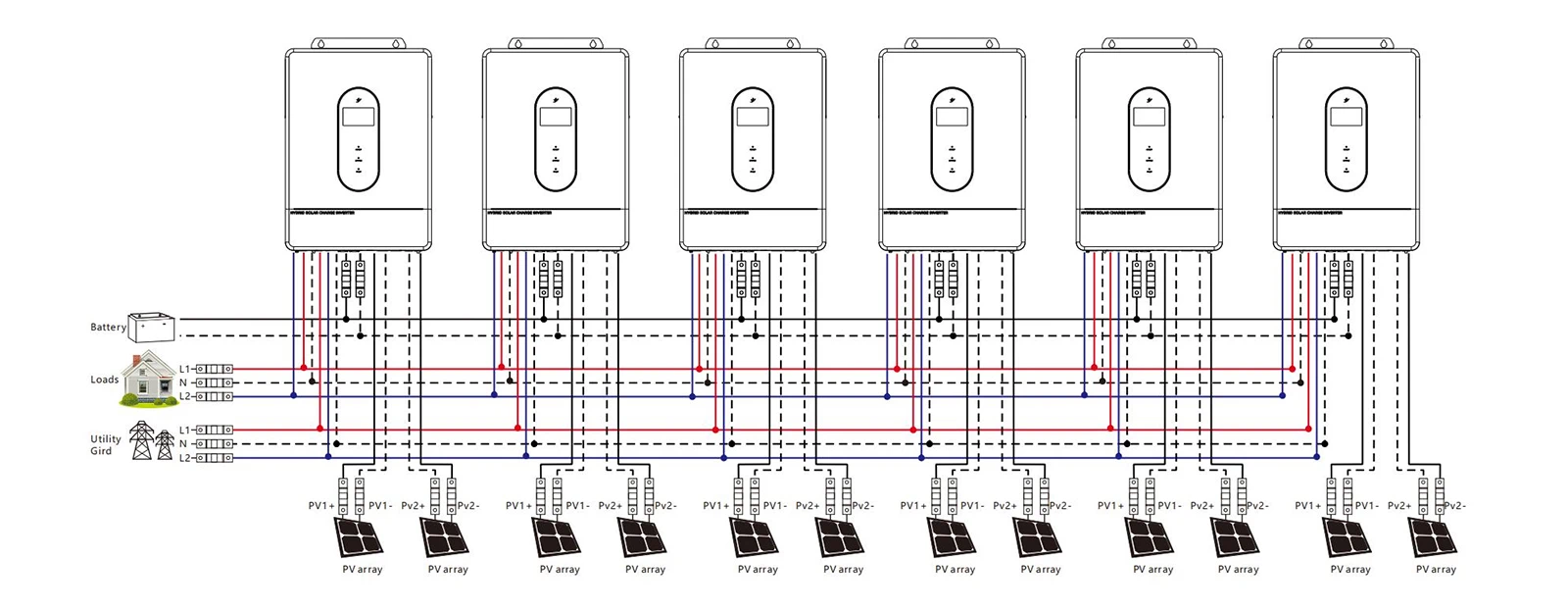

🧩Up to 6 Units Parallel Expansion, Max. 60kW
🔄10ms UPS-Level Switching, Critical Loads Uninterrupted
⚡230A Continuous Discharge, 220A Max. Charging Current
⛽Diesel Generator Input, Dry Contact Start/Stop Control
🖥️Capacitive Touch Color Screen, Remote Diagnostics & OTA
compliance with North American grid standards for safe and reliable solar storage system installation
Our products are customizable.
The warehouse has sufficient stock and shipments can be arranged at any time.
| Parameter | Specification |
| Model | GES48100M220-500P |
| Output Type | Split Phase (120V / 240V) / Single Phase |
| Rated Power (Split) | 10,000W (10KW) |
| Peak Power (Surge) | 20,000W (2x rated, 5-10 seconds) |
| Input Voltage (Mains) | 85-140Vac (Wide range, accepts generator) |
| PV Input (DC) | Max 500Vdc / MPPT range 90-450Vdc |
| MPPT Trackers | 2 (Dual MPPT) |
| Max PV Input Power | 12,000W (6000W + 6000W) |
| Max PV Input Current | 22A + 22A |
| Battery Voltage | 48V (40V ~ 58.6Vdc) |
| Battery Types | Lithium (LiFePO4) / Lead-Acid (GEL, AGM, Flooded) |
| Max Hybrid Charge Current | 220A (AC + PV) |
| Max AC Charge Current | 120A (Configurable) |
| Transfer Time | <10ms (Typical, UPS Mode) |
| Communication | RS485, CAN, USB, Dry Contact, Wi-Fi (Optional) |
| Parallel Capability | Up to 6 Units (60KW total) |
| Enclosure Rating | IP20 / IP21 (Indoor/Sheltered installation) |
| Dimensions (LWH) | 620mm*450mm*132mm |
| Weight | 23.5 kg |
| Certifications | UL 1741, FCC Part 15 Class B |
8KW Split Phase Hybrid Inverter – 48V to 120/240V UL Certified with 500V MPPT for Solar System
Solvic 3.3KW/6.3KW 120V Hybrid Solar Inverter | 500V PV Input | UL Certified for US & Latin America
Solvic 1000W-6000W Low Frequency Split Phase Inverter – 12V/24V/48V to 120/240V, Single or Split Phase Selectable, 3x Surge for Motor Start
Yes. It carries UL1741 certification and complies with NEC 2023 standards. This means your local building department will approve it for grid-tied or off-grid permits. Also includes built-in CT sensor for Zero Export, allowing you to install in areas where utilities don't allow feeding power back (Hawaii, some Caribbean islands, rural electric co-ops).
Yes to both.No battery mode: Even if your battery bank is dead or disconnected, the inverter can still run loads using PV + grid/generator hybrid. Generator input: Set to "GEN mode" and it accepts dirty generator power (40-70Hz). Ideal for backup scenarios in remote areas of Alaska, Canada, or off-grid Andes mountains.
<10 milliseconds. This is true UPS-level switching. Your TV, computer, and router won't even blink. Most cheap inverters take 20-40ms which causes electronics to reboot. Our 10ms transfer keeps your home fully online during grid drops common in Florida, Texas, Puerto Rico, and the Caribbean.
