7.2KW 8KW split phase hybrid inverter 48V to 120/240V. 500V MPPT, <10ms UPS transfer, battery-less mode, parallel ready. UL certified for home backup & off-grid
| Rated Power | 8KW (UL Certified) |
| Voltage | 48VDC to 120/240V Split Phase |
| PV Input | 500VDC Max, 90-450V MPPT, Dual Tracker |
| Battery | 48V (Lead-Acid / Lithium) with BMS Comms |
| UPS Grade | <10ms Transfer, Battery-Less Mode Supported |
| Smart | Parallel up to 6 Units, WiFi Monitoring |
This 8KW split phase hybrid inverter delivers true 120/240V output for US and Latin American homes. Built-in 500V MPPT solar charger handles up to 12KW of solar panels. <10ms UPS transfer keeps your lights on during blackouts.
🔄CT Anti-Reverse Current + AC Coupling, Zero Export to Grid
⚡150% Emergency Peak Output / 5s, Withstands Continuous Impact Loads
☀️10kW Dual-Channel MPPT, 16A/5000W per Channel
⚙️Up to 6 Units Parallel Expansion, Three-Phase System
⏱️10ms UPS-Level Switching, Critical Loads Uninterrupted
⚡180A Battery Continuous Discharge, 160A Max. Charging Current
⛽Diesel Generator Input, Dry Contact Start/Stop Control
🖥️Capacitive Touch Color Screen, Remote Diagnostics & OTA
Perfect for: home backup, off-grid cabin, RV, farm, small commercial.
We possess advanced professional knowledge and technical facilities, which enable us to provide customers with high-quality products.

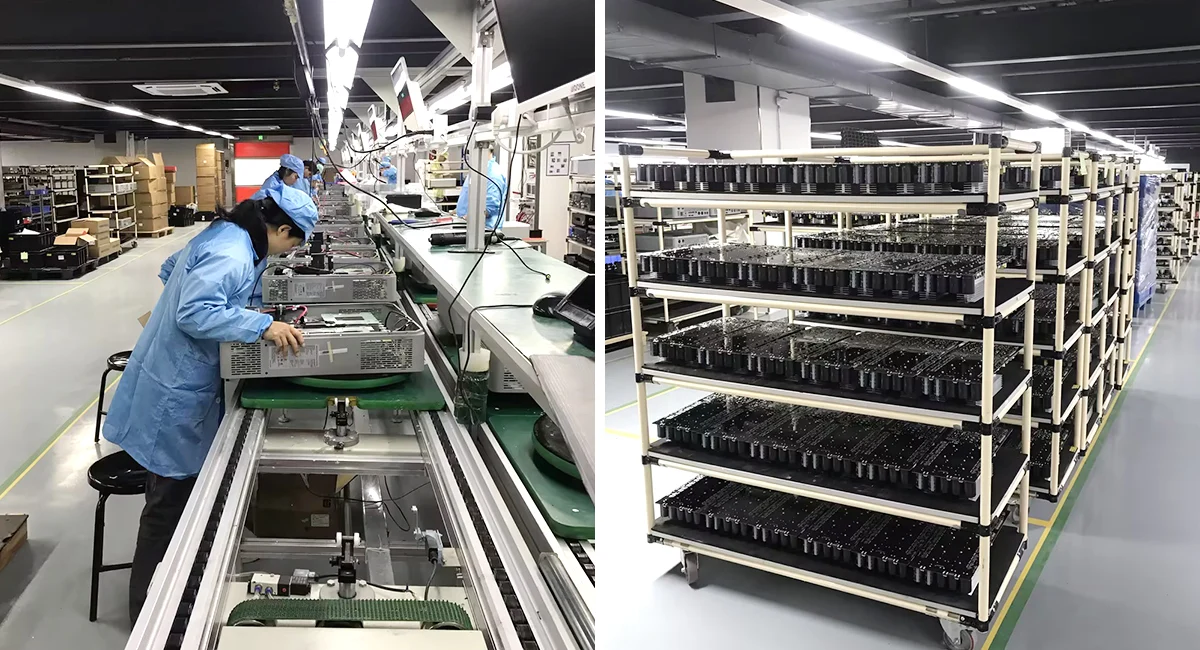

automated assembly and quality control for 12kW split phase hybrid solar inverters, ensuring high manufacturing standards and reliable performance
compliance with North American grid standards for safe and reliable solar storage system installation
Our products are customizable.

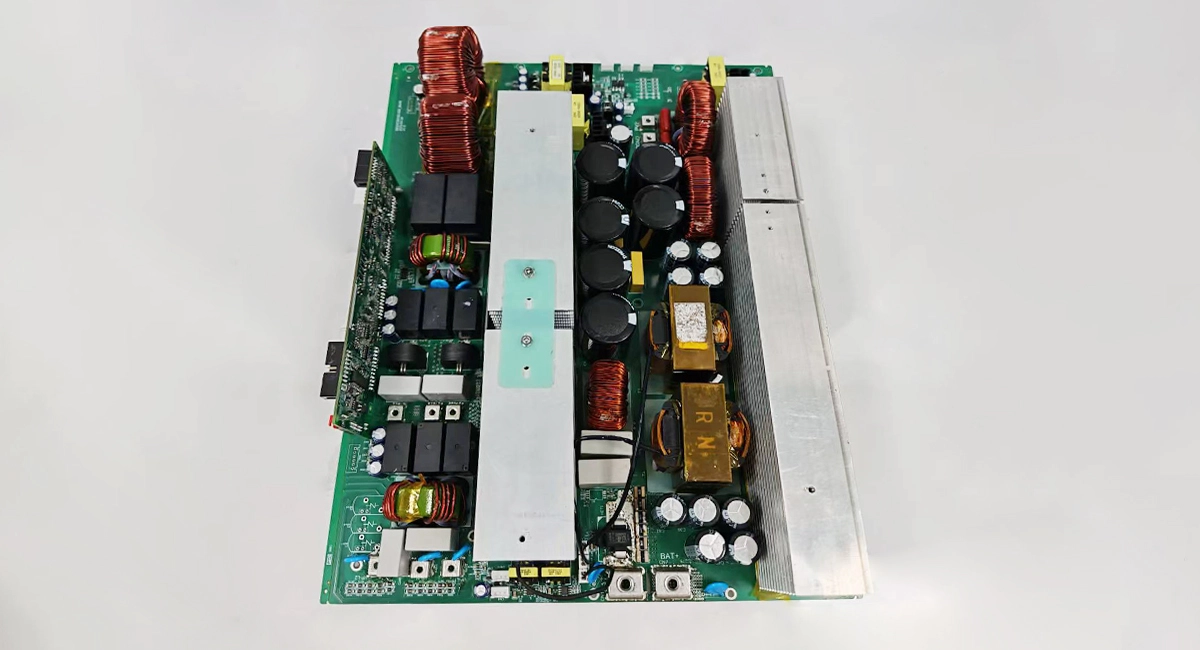

high-quality circuit board layout with power components, robust capacitor banks, and intelligent thermal management design for reliability
Five-year product warranty
Ship within 20 days
| Parameter | 8KW |
| Rated Power | 8000W |
| Peak Power (Surge) | Split phase: 12000VA |
| DC Input | 48VDC (40-60V) |
| AC Output | 120/240V Split Phase |
| PV Input Voltage | 90-450VDC (max 500V) |
| Maximum PV input power | 5000W+5000W |
| MPPT Trackers | 2 (Dual) |
| Max Charge Current | 220A (PV + AC) |
| Transfer Time | <10ms |

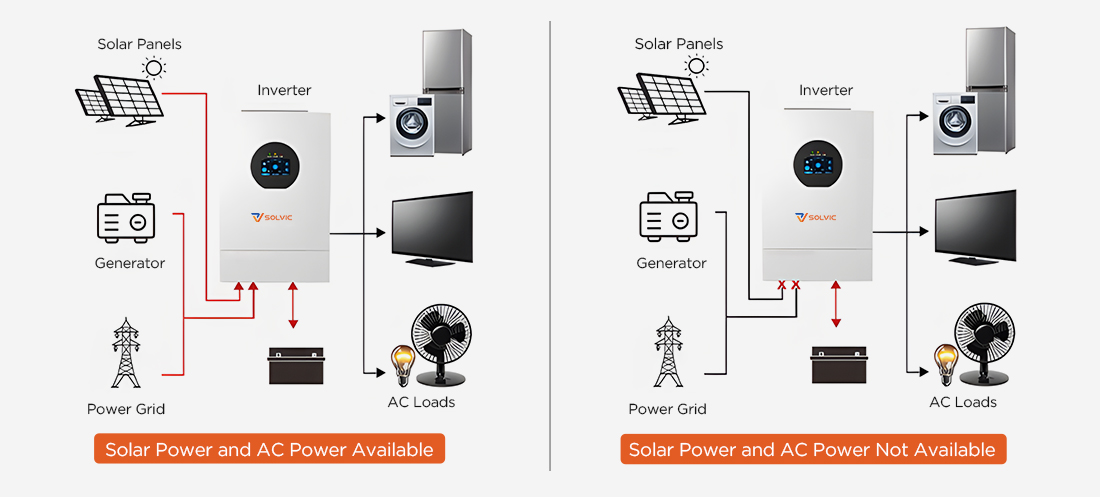

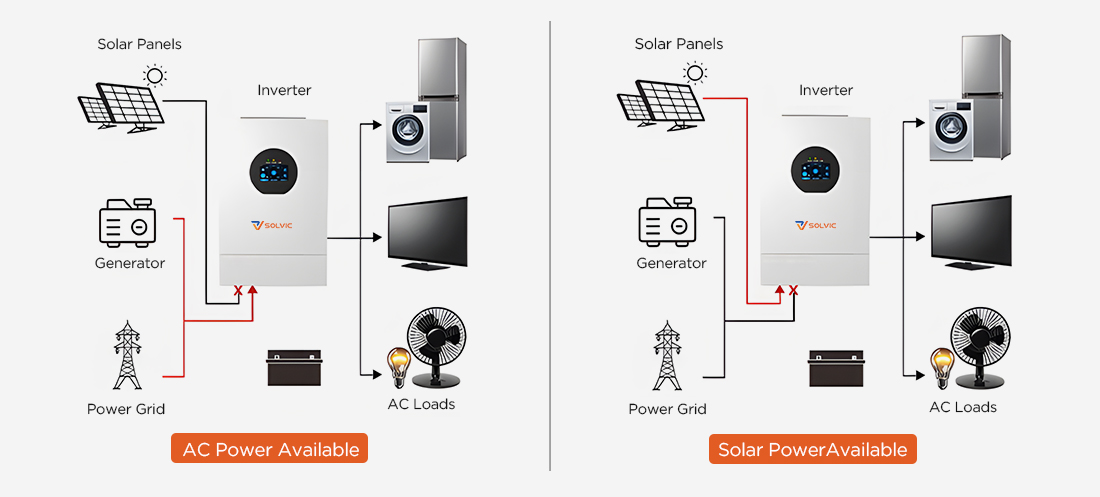

| Working Modes | Off-grid / On-grid / Hybrid |
| Battery-less Mode | Supported |
| Parallel Capability | Up to 6 units |
| Communication | USB/RS485(/WiFi/GPRS)/ Dry node control |
| Certifications | UL 1741, CE, IEC |
| Dimensions (mm) | 696mm*483mm*214mm |
| Weight | 18.9KG |
With 5 peak sun hours and 8KW of solar panels, expect about 30-40kWh per day – enough to power a typical 3-4 bedroom home (fridge, lights, TV, computer, AC, well pump).
Yes. The inverter accepts 120V or 240V generator input (50-140V or 85-140V range). It can be set to start the generator automatically when battery is low (requires ATS).
Same physical size, same features, same installation. The 8KW model provides higher continuous power – choose based on your peak load. For most 3-4 bedroom homes, 7.2KW is sufficient; for large homes with electric AC or EV charger, 8KW is recommended.
