Solar Storage Inverter for America, MPPT Charge Controller 500V, UPS Solar Generator for Home, Parallel Inverter up to 6 units, Zero Export to Grid CT
| Output Type | 120V (L1-N / L2-N) / 240V (L1-L2) Split Phase | |
| Rated Power | 12,000W / 12kW | |
| PV Input (Max) | 500Vdc / 12,000W | |
| Battery Voltage | 48V (40-58.6V) | |
| Parallel Support | Up to 6 Units (72kW Max) | |
| Transfer Time | 10ms (UPS Mode) | |
Engineered for North & South American electrical standards, this 12KW Split-Phase Inverter delivers true 120V and 240V output simultaneously. Keep your lights on during blackouts or cut electric bills with solar.
12KW Continuous Output: Powers large homes (4-6 bedrooms) with 240V appliances, or small businesses like auto repair shops and convenience stores.
24KW Surge Capacity (2x peak): Starts central AC, well pumps, and air compressors without tripping.
Direct Compatibility: 120V for standard outlets, 240V for dryers, EV chargers, water heaters, and 5-ton AC units. No transformer needed.
±2% Voltage Regulation: Protects sensitive electronics from unstable grid swings.
<10ms Transfer Time: Lights stay on, computers won’t shut down during grid failure.
No Battery Required: Runs on solar + grid hybrid input even without battery.
500V MPPT (12KW PV): High-voltage input reduces wiring costs.
Zero Export: Built-in CT sensor prevents backfeeding for self-consumption compliance.
compliance with North American grid standards for safe and reliable solar storage system installation

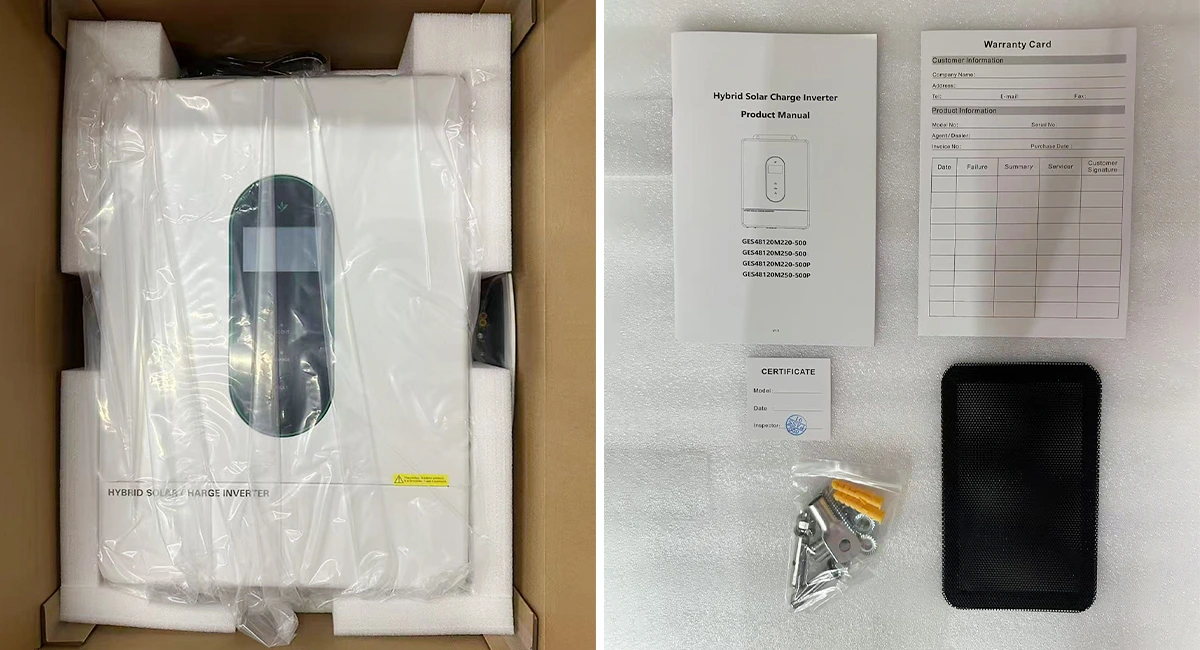

inverter unit, mounting bracket, communication cables, WiFi module, CT sensors, and user manual for complete installation

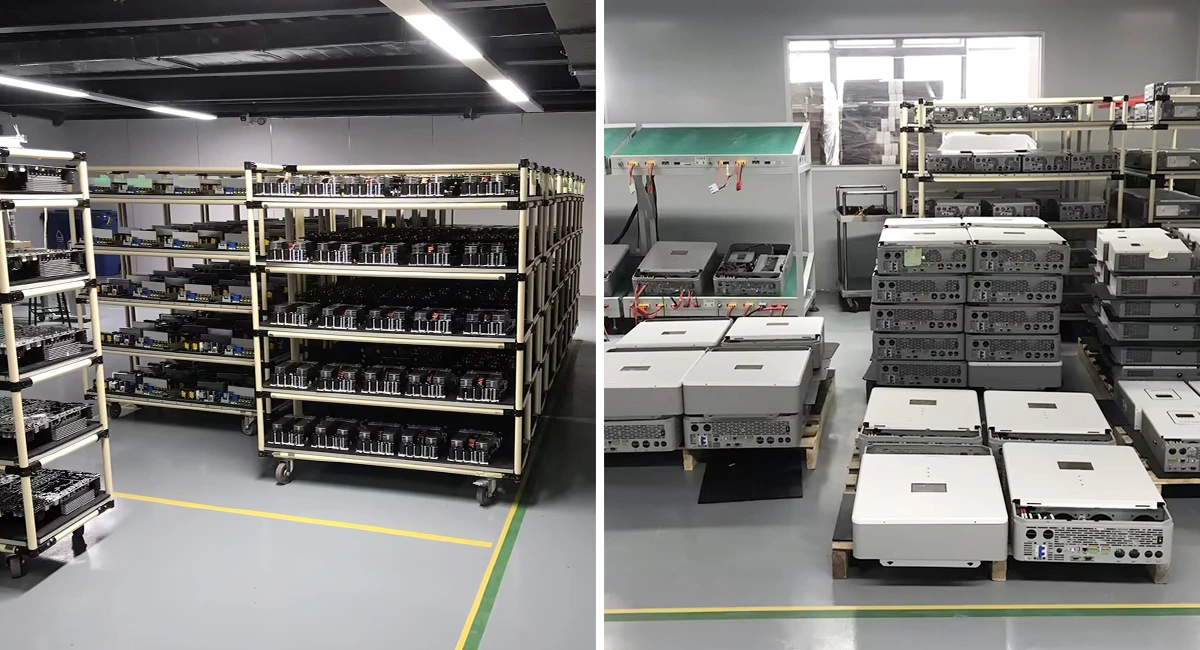

automated assembly and quality control for 12kW split phase hybrid solar inverters, ensuring high manufacturing standards and reliable performance

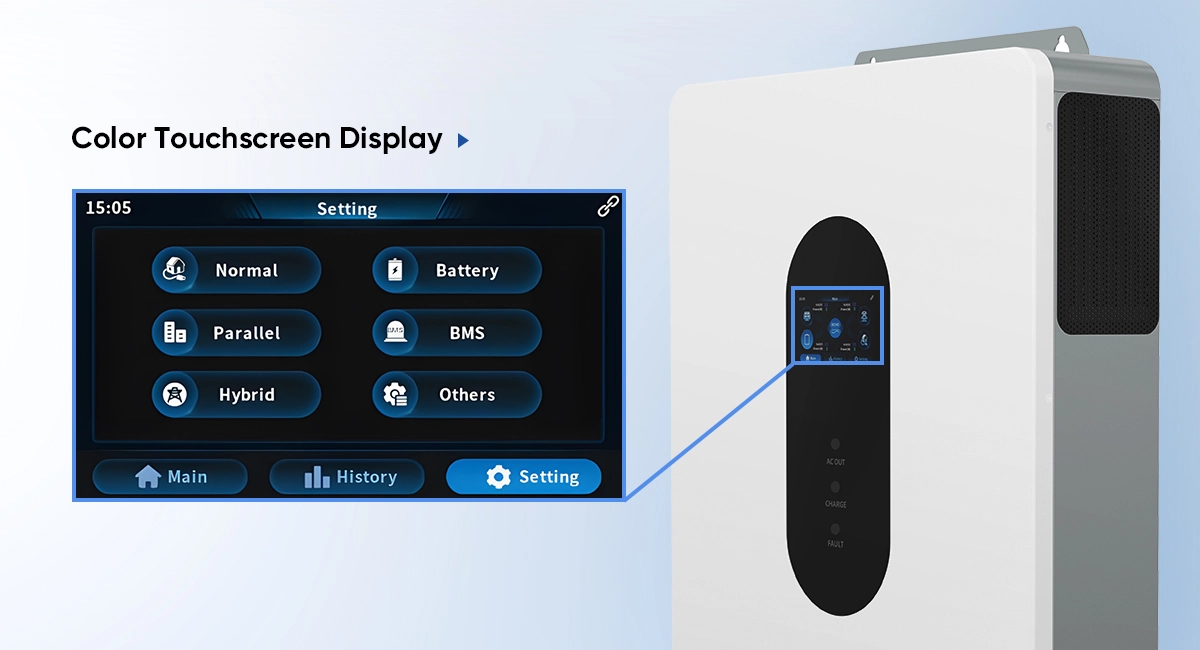

OLED touch panel for real-time system monitoring, parameter settings, and battery management for split-phase solar storage
| Model | GES48120M250-500XP |
| Mains mode | |
| Nominal input voltage | 120(L1/N, L2/N)/240Vac(L1/L2) |
| Frequency | 50Hz/60Hz (Auto detection) |
| Max. efficiency | >95% |
| Inverter mode | |
| Output voltage waveform | Pure sine wave |
| Nominal output power(VA)/(W) | Split phase: 12000 |
| Nominal output voltage (Vac) | 120Vac (L1/N, L2/N)/240Vac(L1/L2) |
| Peak power | Split phase: 18000VA |
| Loaded motor capability | 6HP |
| Battery voltage range | 40.0Vdc~58.6Vdc±0.6Vdc |
| Mains charge | |
| Battery type | Lead acid or lithium battery |
| Max. charge current | 160A |
| Charge voltage range | 40–58.6Vdc |
| Solar charge | |
| MPPT voltage range | 90Vdc~450Vdc |
| Max. PV input power/current | 12000W+12000W |
| Charge current range | 250A |
| Certification | |
| Safety certification | UL STD.1741 |
| EMC certification level | FCC part15, CLASS B |
| Operate temperature range | -10°C to 55°C |
| communicate | USB/RS485(/WiFi/GPRS)/ Dry node control |
8KW Split Phase Hybrid Inverter – 48V to 120/240V UL Certified with 500V MPPT for Solar System
Solvic 3.3KW/6.3KW 120V Hybrid Solar Inverter | 500V PV Input | UL Certified for US & Latin America
Solvic 1000W-6000W Low Frequency Split Phase Inverter – 12V/24V/48V to 120/240V, Single or Split Phase Selectable, 3x Surge for Motor Start
Yes. This 12KW inverter has 24,000W peak surge (2x rated power). It can easily start a 5-ton central AC, well pump, or air compressor.
No. This inverter has native 120/240V split phase output. No transformer needed. Just connect L1/L2/N/PE to your panel.
No. The inverter switches in <10ms (UPS level). Your computer, lights, and TV will keep running without interruption.
