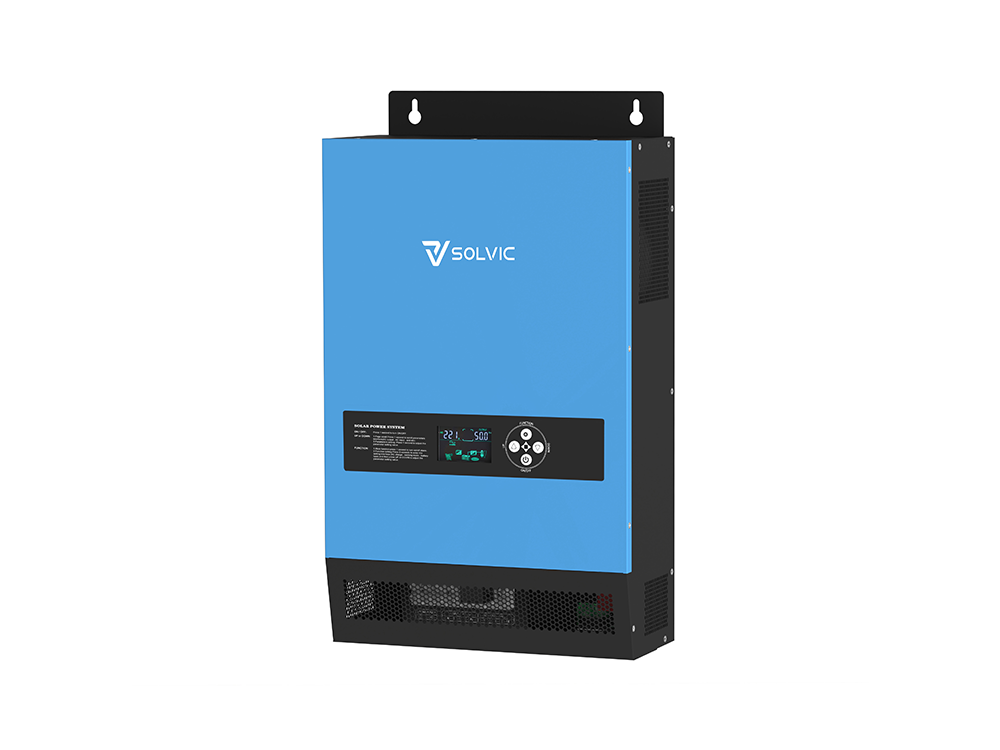

    • Solvic 1000W-6000W low frequency split phase inverter side view showing ventilation and terminal layout for motor start 3x surge
    • Solvic 1000W-6000W low frequency split phase inverter front view – 12V/24V/48V to 120/240V, single or split phase selectable
    • Solvic 1000W-6000W low frequency split phase inverter side view showing ventilation and terminal layout for motor start 3x surge
    Inquire Now

    Solvic 1000W-6000W Low Frequency Split Phase Inverter – 12V/24V/48V to 120/240V, Single or Split Phase Selectable, 3x Surge for Motor Start

    LS Series 1000W-6000W low frequency split phase inverter. 12V/24V/48V DC to 120/240V AC. Single or split phase selectable. 3x surge capacity starts 4HP motors. Toroidal transformer. For home, farm, well pump

    Low Frequency Design 3x Surge Capacity, Starts 4HP Motors
    Split Phase or Single Phase Selectable User Selectable via LCD Panel, One Inverter Fits All
    12V/24V/48V DC Input Compatible with Lead-Acid & Lithium Batteries
    120/240V Split Phase Output Native US Standard, No Transformer Needed
    Toroidal Transformer Heavy Duty, Clean Power, Long Lifespan (8-12 Years)
    0-30A AC Charger 3-Stage Intelligent Charging, Generator Compatible
    Inquire Now

    Description

    LS Series Split Phase Inverter – 1KW-6KW 12V/24V/48V to 110/220V & 120/240V for Americas

    Power: 1000W-6000W | Input: 12V/24V/48VDC | Output: 110/220V & 120/240V Split Phase | Toroidal Transformer
    Applications: Home backup, off-grid system, RV, farm, well pump, industrial equipment

    Why LS Series Split Phase Inverter?

    The LS Series is a true split phase inverter designed specifically for the Americas market. One inverter outputs both 110V and 220V (or 120V and 240V) simultaneously – no transformer needed.

    ⚡ Dual Voltage Output

    L1-N/L2-N:110V/120V
    L1-L2:220V/240V
    One inverter, two voltages

    🔧 Built-in Toroidal Transformer

    Lower no-load loss
    3x surge capacity
    Pure sine wave output

    🔋 Universal Battery Compatible

    Lead-acid (VRLA/AGM/GEL)
    Lithium (LiFePO4) with BMS
    Programmable charging parameters

    ☀️ All-in-One Charger

    Built-in AC charger (0-30A)
    Compatible with generator input
    3-stage intelligent charging

    📡 Smart Monitoring

    RS485 communication
    Optional WiFi/GPRS module
    Mobile APP remote monitoring

    🏭 Factory Direct

    Xindun manufacturer since 2006
    64,000 units annual capacity
    OEM/private label available

    Key Features

    Native Split Phase Output – Two Voltages from One Inverter

    Unlike standard inverters that output only one voltage, the LS Series provides true split phase output:

    Output Type

    Voltage

    Application

    L1 to Neutral

    110VAC or 120VAC

    Standard outlets – lights, TV, computer, small appliances

    L2 to Neutral

    110VAC or 120VAC

    Standard outlets – second phase

    L1 to L2

    220VAC or 240VAC

    Heavy loads – dryer, well pump, AC unit, EV charger

    No external transformer required – connect directly to your home’s electrical panel.

    Toroidal Transformer – 3x Surge Capacity

    Built with a high-quality toroidal transformer (not cheap high-frequency design):

    Model

    Rated Power

    Peak Power (20ms)

    Max Motor Start

    LS102

    1000W

    3000VA

    1 HP

    LS152

    1500W

    4500VA

    1.5 HP

    LS202

    2000W

    6000VA

    2 HP

    LS302

    3000W

    9000VA

    3 HP

    LS402

    4000W

    12000VA

    3 HP

    LS502

    5000W

    15000VA

    4 HP

    LS602

    6000W

    18000VA

    4 HP

    Technical Data

    Parameter LS102 LS152 LS202 LS302 LS402 LS502 LS602
    Rated Power 1000W 1500W 2000W 3000W 4000W 5000W 6000W
    Peak Power (20ms) 3000VA 4500VA 6000VA 9000VA 12000VA 15000VA 18000VA
    Max Motor Start 1 HP 1.5 HP 2 HP 3 HP 3 HP 4 HP 4 HP
    Battery Voltage 12/24/48V 12/24/48V 12/24/48V 24/48V 24/48V 48V 48V
    DC Input Range 10.5-15V 10.5-15V 10.5-15V 21-30V 21-30V 42-60V 42-60V
    AC Output (L1-N/L2-N) 110V/120V ±2% (selectable
    AC Output (L1-L2) 220V/240V ±2% (selectable
    Output Frequency 50Hz / 60Hz ±1% (selectable
    Output Waveform Pure Sine Wave (THD ≤3%
    Transfer Time ≤4ms
    No Load Loss (Battery Mode) ≤0.8%
    AC Charging Current 0-30A-adjustable, 3-stage
    AC Input Voltage Range 110V system: 85-138V / 120V: 95-148V / 220V: 170-275V / 240V: 190-295V
    Battery Type Lead-Acid / Lithium / User-defined
    Dimensions (mm) 500×300×140 530×335×150 530×335×150 530×335×150 530×335×150 530×335×150
    Net Weight (kg) 13.5 18 20 22 24 26
    Communication RS485 / Optional WiFi or GPRS (APP monitoring
    Protections Low/Over Voltage, Overload, Short Circuit, Over Temp, Reverse Polarity
    Certifications CE, IEC, TUV (RoHS compliant

    Elemental Composition

    Appearance

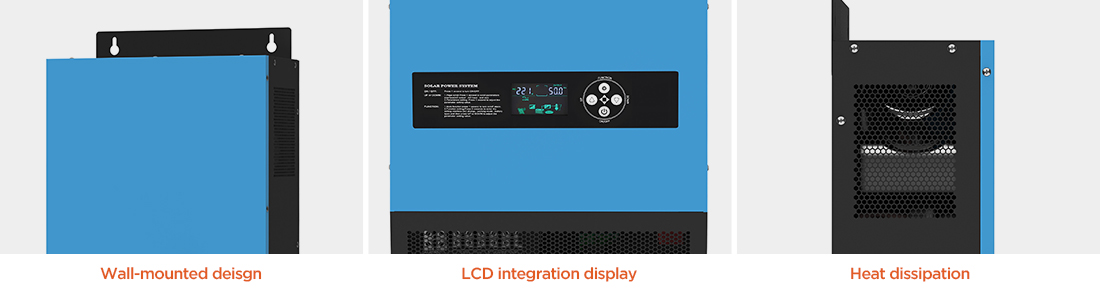

    Solvic 1000W-6000W low frequency split phase inverter case build and LCD screen close-up – 12V/24V/48V system with status display

    Interface

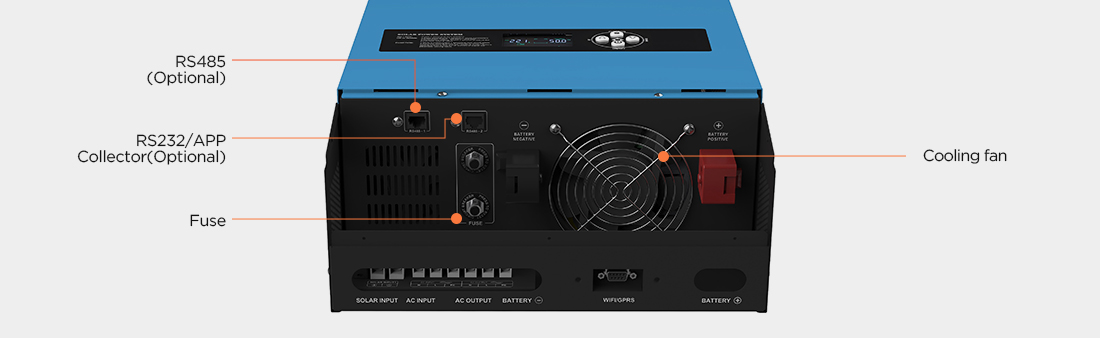

    Solvic split phase inverter rear panel interface diagram showing communication ports (RS485/CAN) and cooling fan ventilation for motor start 3x surge



    Projects

    Download

    Tags:

    120V solar inverter UL certified 3.3KW 6.3KW Hybrid Inverter 48V to 120V inverter charger 500V MPPT solar charge controller Battery-less solar inverter Residential hybrid solar system Split phase inverter

    prev:

    10KW Split Phase Hybrid Inverter | 120/240V Output | 500V PV Input | Off-Grid Home Backup

    next:

    Solvic 3.3KW/6.3KW 120V Hybrid Solar Inverter | 500V PV Input | UL Certified for US & Latin America

    Related Product

    FAQs

    • Q

      What is a low frequency inverter? Why is it better for heavy loads?

      A

      Low frequency inverters use a heavy copper toroidal transformer operating at 50/60Hz, unlike high frequency inverters that use lightweight electronic transformers. Key advantages: 3-5x surge capacity – starts motors, compressors, and pumps easily Handles inductive loads – refrigerators, AC units, well pumps, power tools More durable – fewer electronic components to fail Better overload tolerance – can run at 120% for extended periods Cleaner power – pure sine wave with lower harmonic distortion

    • Q

      Can this inverter output both split phase AND single phase?

      A

      Yes – user selectable. The LS Series can be configured for either: Split Phase Mode (120/240V) : L1-N/L2-N = 120V, L1-L2 = 240V – perfect for US/Canada homes Single Phase Mode (120V only) : Parallel L1 and L2 for double the current on single 120V output Single Phase Mode (240V only) : For 240V-only applications like well pumps or European equipment
