Available in 8kW and 10kW models, it seamlessly integrates solar PV, battery storage, and backup power into one unified system .
| Maximum recommended PV power | 12kW/15kW |
| Number of MPPT | 3 |
| Maximum efficiency | 98.10% |
| Output voltage | 120/240V phase-separated |
| Protection level | IP65 |
| Certification | UL1741 (SA/SB), IEEE1547 |
The Growatt SPH 8000-10000TL-HU-US is a powerful split-phase hybrid inverter tailored for the U.S. market, serving larger households and light commercial applications.
It supports both DC-coupled configurations (direct PV to battery via built-in MPPT) and AC-coupled setups (allowing existing PV-only systems to be retrofitted into full storage systems via the GEN port).Built-in UPS functionality provides seamless backup with a <10ms transfer time, while the 200A charge/discharge capability and generator input enable whole-home backup during outages.
Built-in UPS function transfers to battery power in under 10ms during grid outages, keeping critical loads running without interruption

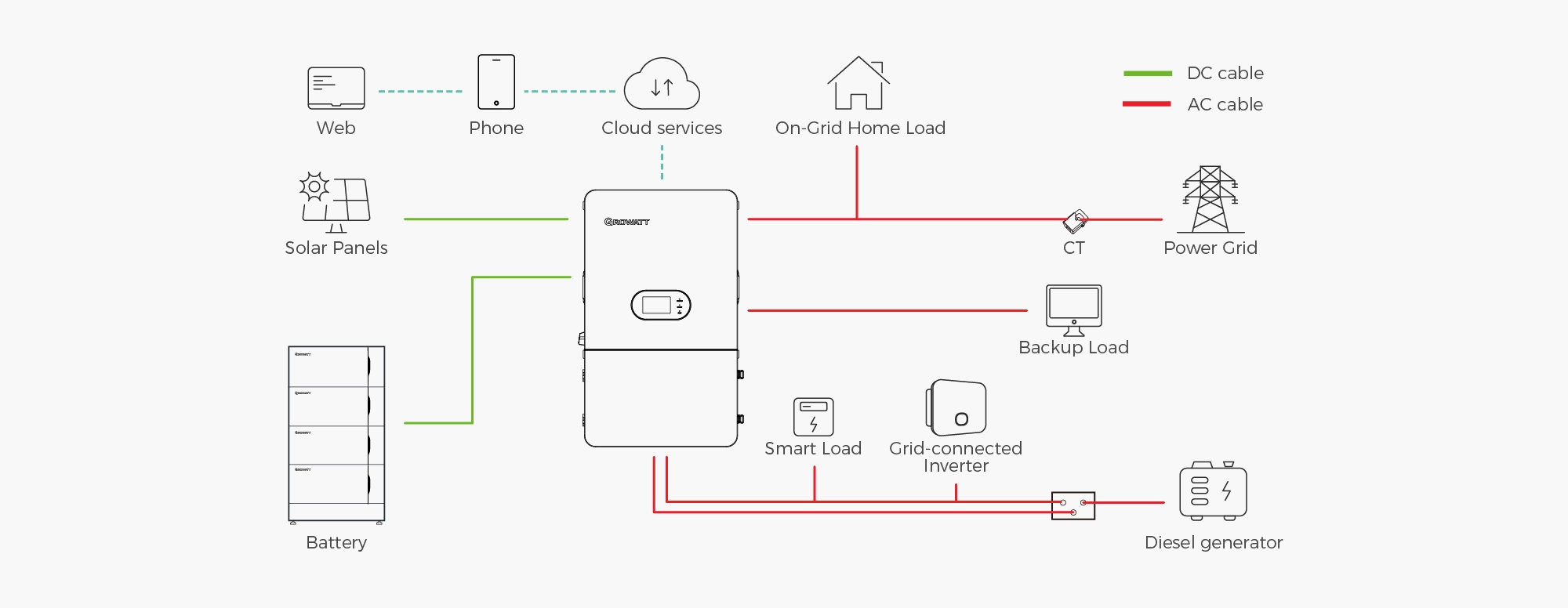

Supports both DC-coupled systems (PV directly to battery) and AC-coupled configurations (retrofitting existing PV systems via GEN port) for flexible system design
Built-in 3 MPPT trackers with 2 strings each, maximizing solar harvest from complex rooftop orientations with up to 22A input current per tracker
Delivers up to 200A continuous charge/discharge current, ensuring rapid battery charging and full utilization of battery capacity for whole-home backup
Supports diesel/gas generator input with automatic start/stop control. Up to 200A grid pass-through enables whole-home backup during extended outages
Interactive LCD touchscreen for local configuration, plus WiFi/4G monitoring via ShinePhone APP for real-time system management and remote control
