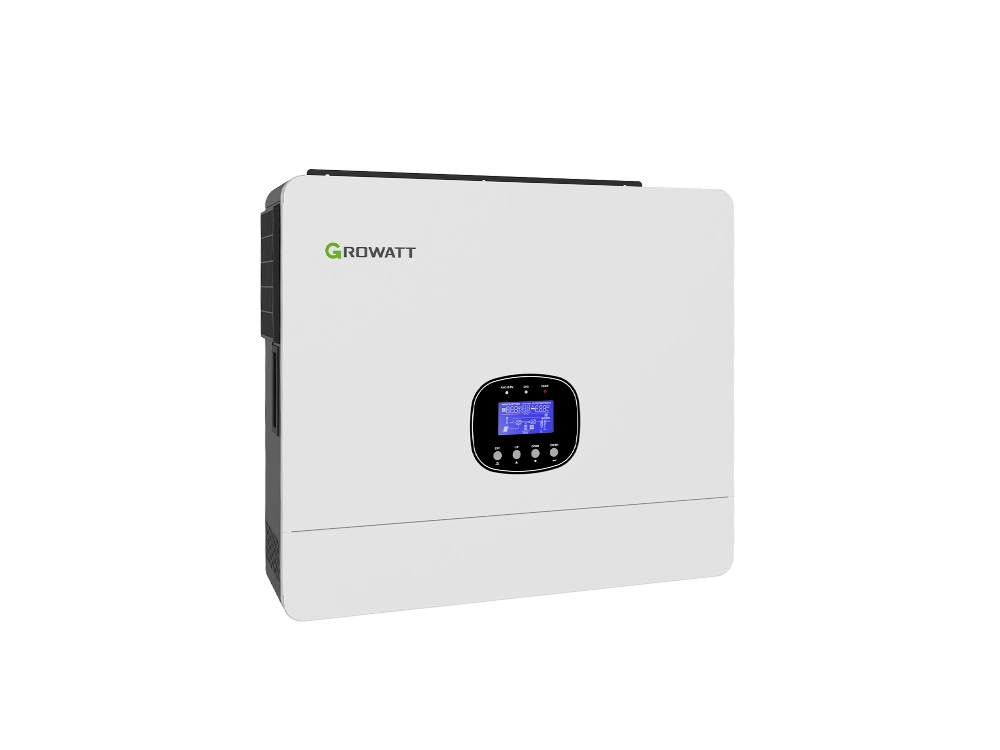

The Growatt SPE 6000-12000 US is a versatile split-phase off-grid hybrid inverter engineered specifically for the US 120/240V residential market . Available in 6kW, 8kW, 10kW, and 12kW configurations.
| Power Range | 6kW, 8kW, 10kW, 12kW |
| Output Voltage | 120/240V Split Phase |
| MPPT | 2 Trackers |
| Battery Voltage | 48Vdc (lead-acid, lithium, GEL compatible) |
| Transfer Time | 10ms typical |
| Parallel Capacity | Up to 9 units |

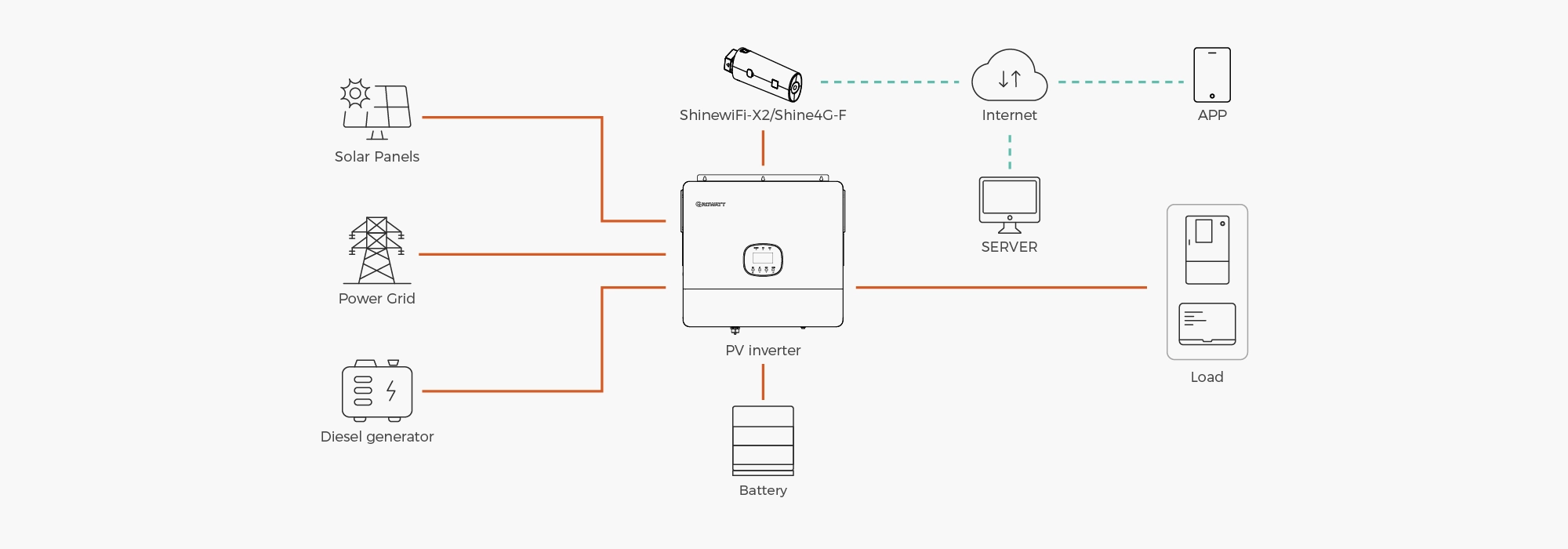

This all-in-one system integrates a dual MPPT solar charge controller,a pure sine wave inverter,and a UPS function module into a single unit, delivering dependable backup power for American homes during grid outages.
Designed with a robust IP20-rated enclosure for indoor installation,the SPE series supports 48V battery systems and is compatible with lithium,lead-acid, and GEL batteries.Its dual AC input features an integrated transfer switch for seamless connection to diesel generators,while the CAN/RS485 communication ports enable precise BMS management with lithium batteries.The SPE series can be scaled up to nine units in parallel,providing a flexible and expandable solution for growing household energy needs.
Built-in UPS function with a fast transfer time of <20ms (<30ms in parallel) ensures seamless power transition during grid outages, keeping essential home appliances running without interruption
Equipped with two independent MPPT trackers,supporting a maximum PV open-circuit voltage of 550V and a wide MPPT voltage range of 60V to 480V,ensuring efficient energy capture even in shaded or mixed orientation conditions
Supports up to 9 units in parallel operation, enabling system expansion up to 108kW without replacing the existing infrastructure,future-proofing your home energy system
Features dual AC input with an integrated transfer switch,allowing seamless connection to a diesel generator as a backup charging source during prolonged grid outages or periods of low solar irradiation
Real-time monitoring of PV generation,household consumption, battery status,and grid interaction through the ShinePhone App. Intelligent time-of-use scheduling maximizes solar self-consumption and reduces electricity bills
Compatible with lithium, lead-acid, and GEL batteries,featuring built-in CAN/RS485 ports for seamless BMS communication with leading lithium battery brands,ensuring safe and precise charge/discharge control
