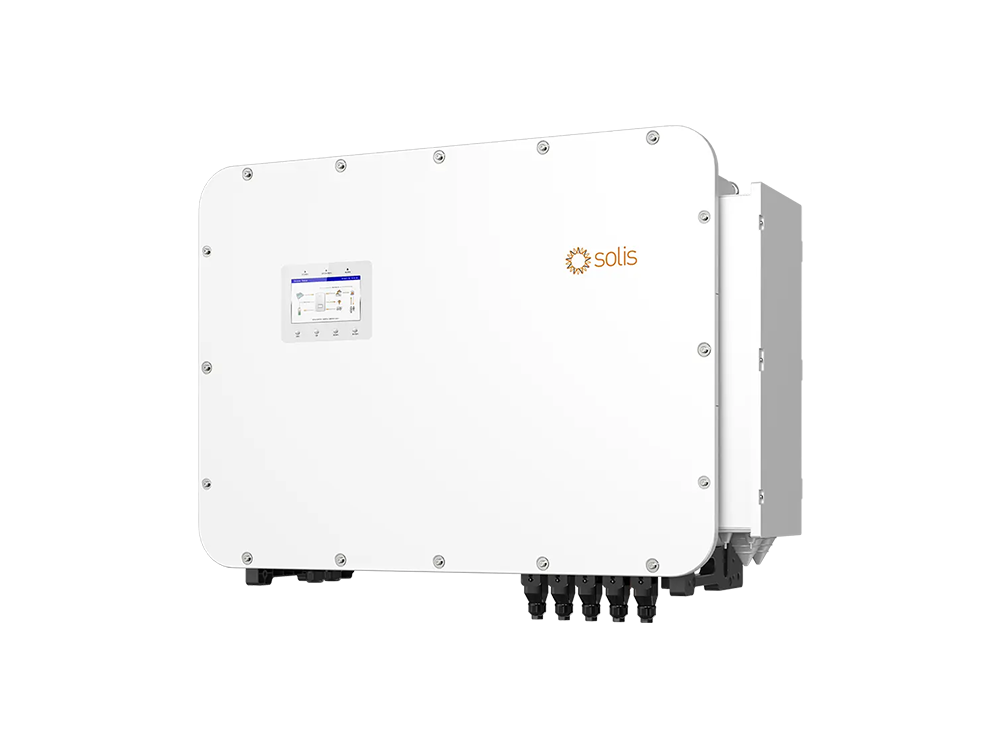

Solis S6 60-75kW three phase hybrid inverter for C&I energy storage. 220/380V output, 300-950V HV battery, 2×100A ports, 10 MPPT, 21A string, IP66 outdoor. Brazil certified.
| Rated Power | 60kW / 75kW |
| Battery | 300-950V HV, 2 ports × 100A |
| PV Input | 1000V Max, 10 MPPT, 21A per string |
| AC Output | 3/(N)/PE, 127 V / 220 V, 133 V / 230 V |
| Protection | IP66 – Outdoor Rated |
| Warranty | 5-10 years (extendable) |
The Solis S6-EH3P(60-75)K10-LV-YD-H is a three-phase high voltage hybrid inverter designed specifically for commercial and industrial (C&I) energy storage projects. With 220/380V or 230/400V output, it connects directly to standard low-voltage three-phase grids – perfect for factories, shopping centers, office buildings, and agricultural facilities.
Whether you’re looking to reduce demand charges, provide backup power for critical operations, or participate in peak shaving programs, the S6 series delivers the flexibility, scalability, and reliability your business demands.
60kW and 75kW models for medium to large C&I projects. 200% surge capacity for motor startups.
Two independent battery ports, each 100A (200A total). Compatible with 100-314Ah HV battery modules.
Install anywhere – no equipment room needed. Dust-tight, rainproof, snowproof.
1000V PV input, 10 independent MPPTs, 21A per string – supports 210mm high-power panels.
Start with 60kW, scale to 750kW. Perfect for growing commercial energy needs.
Critical loads stay powered during blackouts – no interruption to servers, security, or refrigeration.
| Parameter | 60K | 75K |
| Rated Power (Grid / Backup) | 60 kW | 75 kW |
| Peak Surge (Back-up Mode) | 120 kW (200% for 200ms) | 120 kW (160% for 200ms) |
| AC Output (Grid / Backup) | 3/(N)/PE, 127 V / 220 V, 133 V / 230 V | |
| Back-up Switch Time | <10 ms (UPS level) | |
| Battery Voltage Range | 300 – 950 VDC (High Voltage) | |
| Battery Ports / Current per Port | 2 ports × 100A | |
| Max PV Input Power | 120 kW (200% oversizing) | 150 kW (200% oversizing) |
| MPPT Voltage Range | 150 – 950 VDC | |
| MPPT / Strings | 10 MPPT / 20 strings | |
| Max PV String Input Current | 21A (per string) | |
| Ingress Protection | IP66 – Outdoor Rated | |
| Dimensions (W×H×D) | 1174 × 814 × 400 mm | |
| Weight | 170 kg (375 lbs) | |
| Operating Temperature | -25°C to +60°C (-13°F to 140°F) | |
| Max Efficiency | 96.0% (LV models) / 97.5% (NV models) | |
| Communication | CAN, RS485-115200, Ethernet, Bluetooth, WiFi/LAN (optional) | |
| Parallel Capability | Up to 10 units (600kW to 750kW total) | |
| Certifications | IEC 62109, EN 50549, G99, CEI 0-21, PORTARIA 140/515, etc. | |
| Warranty | 5 years (extendable to 20 years) | |
💰 Wholesale pricing for integrators and distributors
📄 Technical datasheet & certification documents
🏭 Sample order for testing
🚢 Shipping to Brazil, Europe, and global markets
🔋 Battery compatibility verification
📐 System design support for peak shaving, demand charge reduction, and microgrids
Free technical support – Our engineering team can help with string sizing, battery matching, and parallel system design.
60kW model: 120kW DC (200% oversizing) 75kW model: 150kW DC (200% oversizing) This allows you to install a larger PV array than the inverter's AC rating, maximizing energy production during non-peak hours.
Yes. The inverter has two independent battery ports (BAT1 and BAT2), each with 100A capacity. You can connect: Two different battery brands or models Two batteries with different capacities A single large battery to one port (other port unused) Solis recommends using batteries with the same specification for optimal system performance.
300V to 950V DC – high voltage battery architecture. Compatible with 100Ah to 314Ah HV battery modules from leading manufacturers. Check Solis battery compatibility sheet for approved models.
