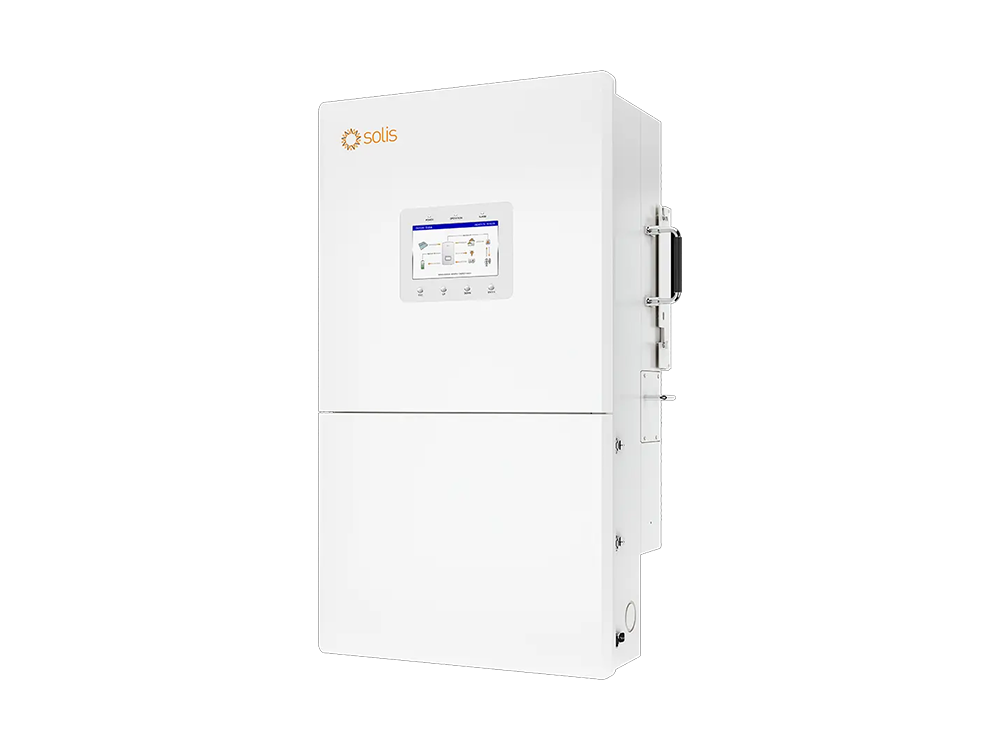

Solis S6 9.6-16kW split phase hybrid inverter. 48V low voltage, 200A pass-through, 290A battery charge/discharge, 3 MPPT, 20A PV input, 550V max. UL certified. For whole home backup, off-grid, microgrid.
| Rated Power | 9.6kW / 11.4kW / 12kW / 14kW / 16kW |
| Battery | 48V (40-60V), 290A max charge/discharge |
| PV Input | 550V max, 3 MPPT, 20A per MPPT |
| AC Output | 120/240V Split Phase (60Hz) |
| Certifications | UL 1741, UL 1699B, UL 3741, FCC |
| Warranty | 5-10 years (extendable) |
The Solis S6 48V Hybrid String Inverter is designed to deliver true energy independence for North American homeowners. Offering flexible power classes from 9.6kW to 16kW, this versatile solution supports whole-home backup, lightning-fast switchover during outages, and intelligent ports for seamless integration with existing PV, sheddable loads, or generators.
Rated for 200A pass-through and compatible with a wide range of battery types and brands, the S6 48V Hybrid makes resilient, cost-effective solar + storage installations easier than ever.
Lights, TV, computer, fridge, microwave, small appliances
Well pump, dryer, EV charger, AC unit, water heater, workshop tools
| Parameter | 9.6K | 11.4K | 12K | 14K | 16K |
| Rated Power (Grid / Backup) | 9.6kW | 11.4kW | 12kW | 14kW | 16kW |
| Peak Surge | 3x rated for 1 second / 2x rated for 10 seconds | ||||
| Max Battery Charge Current | 200A | 237.5A | 250A | 290A | 290A |
| Max Battery Discharge Current | 200A | 237.5A | 250A | 290A | 290A |
| Battery Voltage Range | 40-60V | ||||
| Max PV Input Power | 15.36kW | 18.24kW | 19.2kW | 22.4kW | 25.6kW |
| Max PV Input Voltage | 550V | ||||
| MPPT Voltage Range | 100-450V | ||||
| Max PV Input Current (per MPPT) | 40A | ||||
| MPPT / Input Strings | 3-6 | ||||
| AC Output (Backup) | 120/240V Split Phase | ||||
| Back-up Switch Time | <10ms | ||||
| Dimensions (W×H×D) | 534×930×297mm | ||||
| Weight | 65.8kg | ||||
| Ingress Protection | TYPE 4X (IP66) | ||||
| Max Efficiency | 96.02% | ||||
| Communication | WiFi + LAN + Bluetooth + RS485 + CAN | ||||
| Parallel Capability | Up to 6 units (96kW max) | ||||
| Certifications | UL 1741, UL 1699B, UL 1998, UL 3741, IEEE 1547, FCC Class B | ||||
| Warranty | 5 years (extendable to 10 years) | ||||
The S6 9.6-16kW series is designed for whole-home backup, not just critical loads. Key differences: 200A pass-through – powers your entire home, no subpanel needed 290A battery charge/discharge – supports larger battery banks 3 MPPT with 40A each – handles high-power 210mm PV panels True split phase 120/240V – native US standard, no transformer TYPE 4X (IP66) outdoor rating – install anywhere, not just garages
Use this formula: Battery Capacity (kWh) = Daily Load (kWh) ÷ DoD Example for a typical home using 30kWh per day with LiFePO4 (90% DoD): 30kWh ÷ 0.9 = 33kWh minimum For lead-acid batteries (50% DoD): 30kWh ÷ 0.5 = 60kWh *The S6 supports up to 290A charge/discharge – enough for most residential battery banks
The S6 has 3 independent MPPTs (Maximum Power Point Trackers). This matters because: You can connect PV arrays facing different directions (e.g., east, south, west) Partial shading on one string doesn't affect others Maximizes energy harvest from complex roof layouts
