Solis S6 30kW three phase hybrid inverter. 120/240V output, 150-800V HV battery, 1000V PV input, 3 MPPT, 40A per tracker. TYPE 4X outdoor rated. UL1741. For commercial solar storage.
| Rated Power | 30kW (48kW surge, 160%/2s) |
| Battery | 150-800V HV, 70A × 2 ports |
| PV Input | 1000V Max, 3 MPPT, 40A per tracker |
| AC Output | 120/208V or 120/240V Three Phase |
| Ingress Protection TYPE 4X (IP66) | Outdoor Rated |
| Parallel Capability | Up to 6 units (180kW total) |
The Solis S6-EH3P30K03-LV-YD-H-US is a three-phase high voltage hybrid inverter designed specifically for North American commercial and large residential applications. It outputs 120/208V or 120/240V split phase – compatible with US and Canadian three-phase electrical systems.

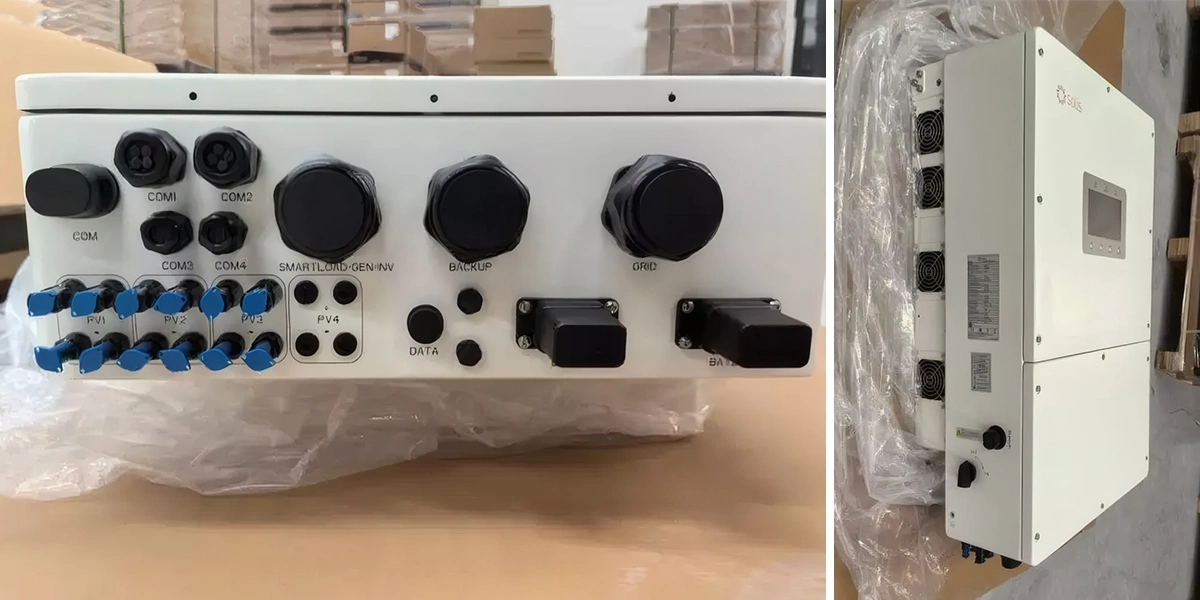

This inverter features two independent battery ports (70A each, 150-800V), allowing connection to two different battery banks for maximum flexibility. With 3 MPPTs and 1000V PV input, it handles high-power commercial PV arrays (up to 60kW DC oversizing). TYPE 4X (IP66) outdoor rating means it can be installed anywhere – no equipment room required.
30kW continuous output, 48kW surge (160% for 2 seconds). Powers commercial loads, EV chargers, and whole buildings.
Compatible with 100-280Ah HV battery modules. Two independent battery ports – mix and match capacities.
Fully sealed against dust, rain, snow, and pressure washing. Install outdoors – no indoor space needed.
40A per MPPT, supports 210mm high-power panels. PV oversizing up to 200% (60kW DC input).
Scale from 30kW to 180kW. Perfect for growing commercial energy needs.
Seamless blackout protection for critical loads – computers, servers, and equipment never lose power.
40A per MPPT, supports 210mm high-power panels. PV oversizing up to 200% (60kW DC input).
Scale from 30kW to 180kW. Perfect for growing commercial energy needs.
40A per MPPT, supports 210mm high-power panels. PV oversizing up to 200% (60kW DC input).
Scale from 30kW to 180kW. Perfect for growing commercial energy needs.
| Parameter | Value |
| Rated Power (Grid / Backup) | 30 kW |
| Peak Surge | 48 kW (160% for 2 seconds) |
| AC Output (Backup) | 120/208V or 120/240V Three Phase |
| Back-up Switch Time | <10 ms (UPS level) |
| Battery Voltage Range | 150 – 800 VDC |
| Battery Ports / Current | 2 ports × 70A (33kW each) |
| Max Battery Power | 33kW (single) / 66kW (dual) |
| Max PV Input Power | 60 kW (200% oversizing) |
| Max PV Input Voltage | 1000 VDC |
| MPPT Voltage Range | 150 – 850 VDC |
| MPPT / Strings | 3 MPPT / up to 6 strings |
| Max PV Input Current per MPPT | 40 A |
| Ingress Protection | TYPE 4X (IP66) – Outdoor Rated |
| Dimensions (W×H×D) | 560 × 1050 × 346.5 mm |
| Weight | 88.8 kg (195.8 lbs) |
| Operating Temperature | -25°C to +60°C (-13°F to 140°F) |
| Max Efficiency | 97.90% |
| Communication | RS485, CAN, Ethernet, Bluetooth |
| Parallel Capability | Up to 6 units (180kW max) |
| Certifications | UL 1741, IEEE 1547, CA Rule 21, FCC |
| Warranty | 5 years (extendable) |
💰 Wholesale pricing for integrators and distributors
📄 Technical datasheet & certification documents
🏭 Sample order for testing
🚢 Shipping to US, Canada, Mexico
🔋 Battery compatibility verification
📐 System design support
The inverter supports 120/208V three-phase (standard for US commercial buildings) and 120/240V three-phase (common for larger residential and light commercial). Selectable during commissioning via touchscreen or SolisCloud app. For South America (e.g., Brazil 220/380V), check local voltage requirements.
Yes. TYPE 4X (IP66) rating means it is dust-tight, rainproof, snowproof, and pressure wash safe. Operating temperature range -25°C to +60°C (-13°F to 140°F) . Suitable for: Canada/US Midwest – cold winters (-25°C/-13°F) Florida/Texas/Caribbean – high heat and humidity Brazil/Chile – various climate zones Coastal areas – with salt spray protection (add external shield for severe marine environments)
3 independent MPPTs, each with 40A current capacity. Each MPPT can handle 2 strings (up to 6 strings total). This is important because commercial rooftops often have multiple orientations (east, south, west). Each orientation can be connected to a separate MPPT to maximize energy harvest across the entire day.
