| Rated Power | 5kW / 6kW / 7.5kW / 8kW |
| Peak Surge | 200% for 10 seconds |
| AC Output | 120/240V Split Phase |
| PV Input | 500V Max, 90-435V MPPT, 2 Trackers |
| Battery | 40-60V, 190A Max Charge/Discharge |
| Ingress Protection | IP66 (NEMA 4X) – Outdoor Rated |

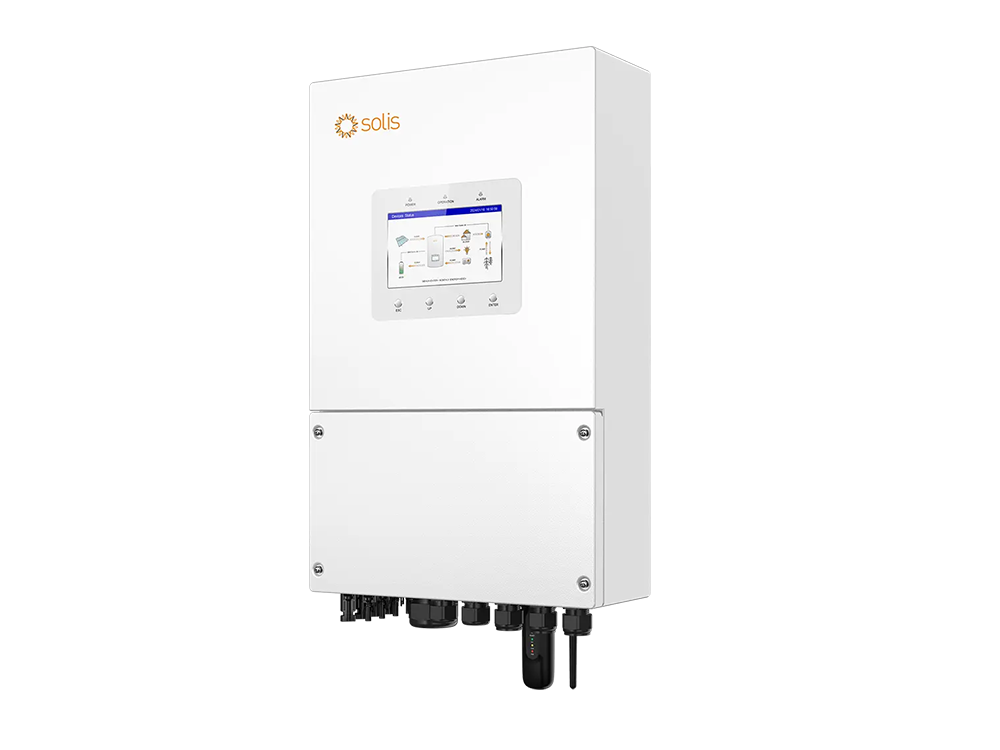

The S6-EH2P(5-8)K02-SV-YD-L is a PV hybrid inverter designed for 220V split-phase grids (120/240V). It supports a string current input of up to 21A, making it compatible with various high-power PV panels, including 210mm modules. Multiple units can be connected in parallel to create a high-capacity system with a maximum output of 48kW. Additionally, the inverter features a dedicated generator interface for enhanced energy application reliability.
✅ Split phase 120/240V output – native US standard, no transformer needed
✅ IP66 ingress protection – install outdoors, withstands rain, snow, dust
✅ 200% overload for 10 seconds – starts motors, pumps, and AC units
✅ <10ms UPS switching – seamless blackout protection
✅ 6-unit parallel – expand from 5kW to 48kW
✅ AC coupling support – retrofit existing grid-tied solar systems
✅ Generator auto start – connect and control backup generator

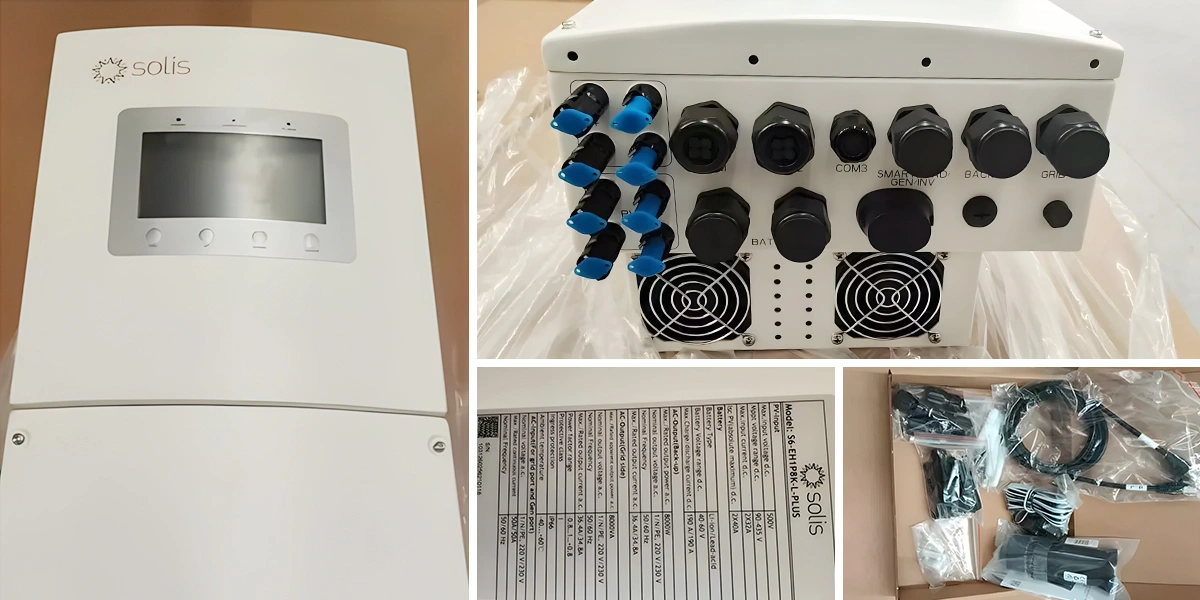

✅ 7-inch touchscreen + Bluetooth + WiFi + LAN monitoring
Split phase 120/240V output – native US standard, no transformer needed
Split phase 120/240V output – native US standard, no transformer needed
Split phase 120/240V output – native US standard, no transformer needed
| Parameter | 5K | 6K | 7.5K | 8K |
| Rated Power (Grid / Backup) | 5kW | 6kW | 7.5kW | 8kW |
| Peak Surge (10 seconds) | 10kW | 12kW | 15kW | 16kW |
| Max Battery Charge / Discharge Current | 112A | 135A | 190A | 190A |
| Battery Voltage Range | 40-60V | |||
| Max PV Input Power | 8kW | 9.6kW | 12.8kW | 12.8kW |
| Max PV Input Voltage | 500V | |||
| MPPT Voltage Range | 90-435V | |||
| Max PV Input Current | 21A/21A | 21A/42A | 42A/42A | 42A/42A |
| MPPT / Input Strings | 2-2 | 2-3 | 2-4 | 2-4 |
| AC Output (Backup) | 120/240V Split Phase | |||
| Back-up Switch Time | <10ms | |||
| Dimensions (W×H×D) | 390×620×237mm | |||
| Weight | 28.8kg | |||
| Ingress Protection | IP66 | |||
| Max Efficiency | 96.00% | |||
| Communication | WiFi + LAN + Bluetooth + RS485 + CAN | |||
| Parallel Capability | Up to 6 units (48kW max) | |||
| Certifications | UL 1741, UL 1699B, FCC, Inmetro | |||
| Warranty | 5 years (extendable to 20 years) | |||
Any 48V lithium (LiFePO4) battery with CAN/RS485 BMS communication, or lead-acid batteries. The inverter supports battery voltages from 40V to 60V – covering all standard 48V battery systems. For lead-acid batteries, the battery temperature sensor is recommended.
Yes. The S6 series supports "PV only off grid mode" – the inverter can power loads directly from solar during the day (limited conditions apply). However, for full backup functionality and nighttime power, batteries are required.
Yes. IP66 (NEMA 4X) rating means it is fully protected against dust, rain, snow, ice, and pressure washing. Operating temperature range: -25°C to +60°C. Install on a north-facing wall for best performance (avoid direct sunlight).
