LONGI Hi-MO X10 LR7-72HVHF 640-670M
| Model | LR7-72HVHF 640-670M |
| Dimensions | 2382×1134×30mm |
| Weight | 28.5kg |
| Warranty | 30 Years |
| Lead time | 10-15 days after payment |
| Packaging | 35 pcs/pallet,700 pcs/40HQ |
LONGI Hi-MO X10 LR7-72HVHF 640-670M
Description
Why Choose LONGI Hi-MO X10 LR7-72HVHF 640-670M ？
The LR7-72HVHF solar module, available in power ratings from 640W to 670W, features high efficiency and durability, making it suitable for industrial and commercial applications. It comes with a 15-year warranty for materials and processing, and a 30-year warranty for extra linear power output. The module meets various international certifications and operates reliably under harsh conditions, with a maximum efficiency of 24.8%.
Product features
🔋HPBC 2.0 High-Efficiency Cells
Equipped with HPBC 2.0 cell, inheriting high-efficiency gene
🛡️Reliable Under Harsh Conditions
High reliability, stable operation under harsh conditions
🧹Dust-Resistant Frame Design
Unique frame design effectively reduces the impact of dust accumulation and improves power generation gain throughout the entire lifecycle
🏭Ideal for Industrial Roofs & Low-Angle Installations
More suitable for industrial and commercial color steel tile roofs and small angle installation scenarios
Technical Data
| Module Type | LR7-72HVHF-640M | LR7-72HVHF-645M | LR7-72HVHF-650M | LR7-72HVHF-655M | LR7-72HVHF-660M | LR7-72HVHF-665M | LR7-72HVHF-670M | |||||||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power(Pmax/W) | 640 | 487 | 645 | 491 | 650 | 495 | 655 | 499 | 660 | 502 | 665 | 506 | 670 | 510 |
| Open CircuitVoltage(VocM) | 53.7 | 51.04 | 53.8 | 51.13 | 53.90 | 51.23 | 54 | 51.32 | 54.1 | 51.42 | 54.2 | 51.52 | 54.3 | 51.62 |
| Short Circuit Curent(Isc/A) | 15.13 | 12.15 | 15.21 | 12.22 | 15.29 | 12.28 | 15.37 | 12.34 | 15.45 | 12.41 | 15.53 | 12.48 | 15.61 | 12.55 |
| Voltage at Maximum Power (VmpM) | 44.36 | 42.15 | 44.46 | 42.25 | 44.56 | 42.35 | 44.66 | 42.44 | 44.76 | 42.54 | 44.86 | 42.64 | 44.96 | 42.74 |
| Curent at Maximum Power(Imp/A) | 14.43 | 11.56 | 14.51 | 11.63 | 14.59 | 11.69 | 14.67 | 11.76 | 14.75 | 11.82 | 14.83 | 11.88 | 14.91 | 11.94 |
| Module Efficiency(%) | 23.7 | 23.9 | 24.1 | 24.2 | 24.4 | 24.6 | 24.8 | |||||||
Elemental Composition

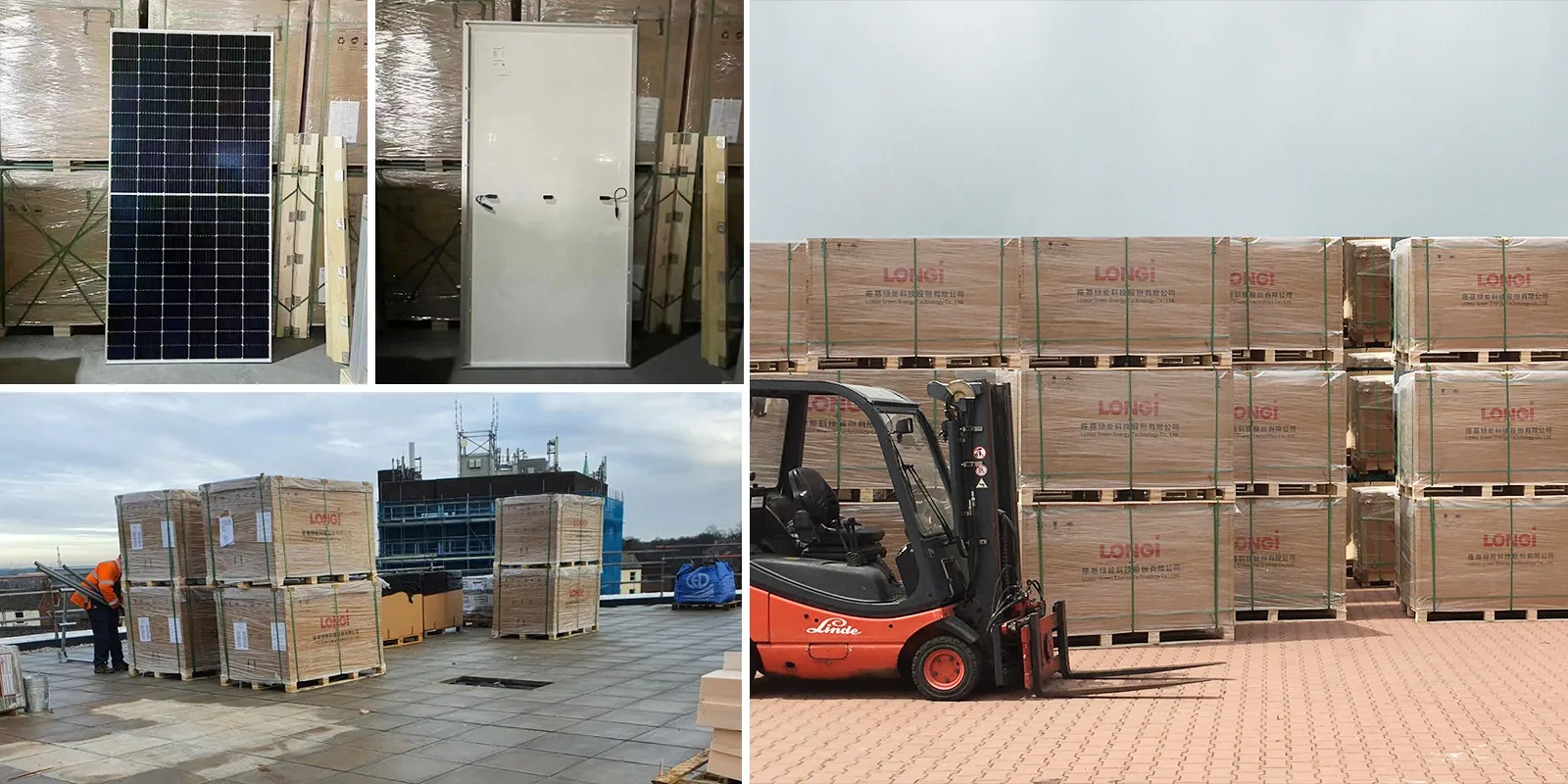

Packaging and Transportation
